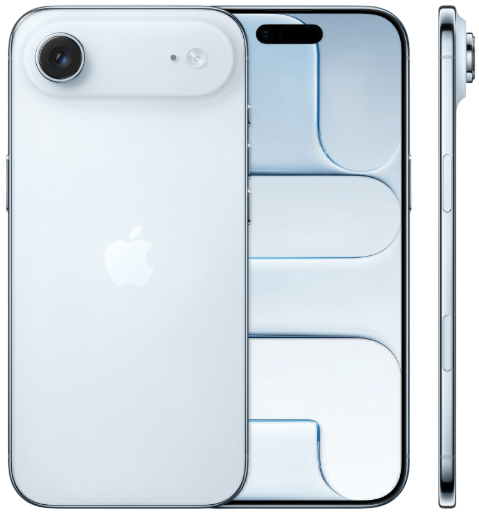

Product Overview

The iPhone Air is Apple’s thinnest smartphone ever, combining a lightweight titanium frame with a 6.6‑inch OLED display and the A19 chip. It replaces the Ring/Silent switch with the programmable Action button and introduces Camera Control for DSLR‑like handling. The phone comes with a braided USB‑C cable and runs iOS 20. It supports Apple Intelligence, Wi‑Fi 7, and satellite connectivity for emergencies.

Key Features

• A19 Chip & Apple Intelligence: The A19 processor powers on‑device AI features like writing tools, image cleanup, and a smarter Siri that understands personal context. Apple Intelligence requires downloading a small model to the device. It’s available for free and can be turned off.
• 6.6‑inch OLED Display: The Super Retina XDR panel has a 120Hz adaptive refresh rate. The Dynamic Island at the top shows live activities, timers, and music controls.
• 48 MP Main Camera & Camera Control: The dual‑camera system includes a 48 MP main sensor and a 12 MP ultra‑wide. The new Camera Control button on the right edge gives you quick access to the camera and lets you adjust zoom, exposure, and focus with haptic feedback.
• Action Button: Replaces the mute switch. Press and hold to toggle silent mode, or customise it for flashlight, voice memos, shortcuts, or any app.
• USB‑C Connectivity: The USB‑C port supports charging, data transfer (USB 3 speeds on this model), and connecting to external displays, drives, and wired headphones.
• Satellite Connectivity: Send messages via satellite, use Emergency SOS, and get roadside assistance even without cellular or Wi‑Fi. Free for two years.
• Wi‑Fi 7 & Bluetooth 5.4: Next‑gen wireless for faster downloads and more stable connections.

How to Use

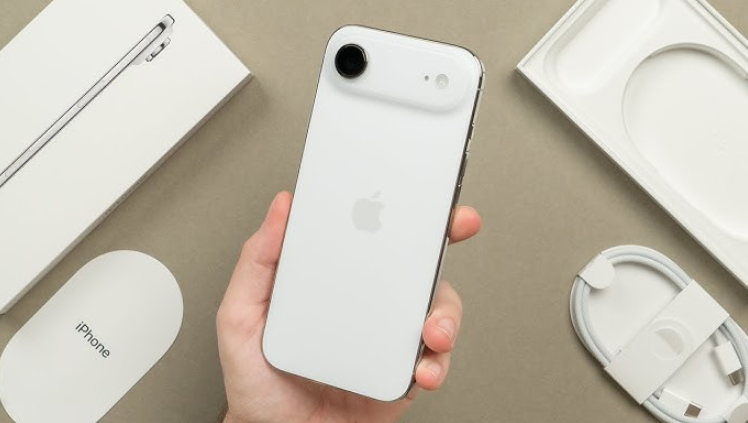

What’s in the Box

• iPhone Air (model A3312) with pre‑applied screen protector film
• Braided USB‑C to USB‑C charge cable (1 metre)
• SIM ejector tool
• Quick‑Start Guide and warranty card

No power adapter or EarPods are included. Use any USB‑C power adapter (20W or higher recommended for fast charging).

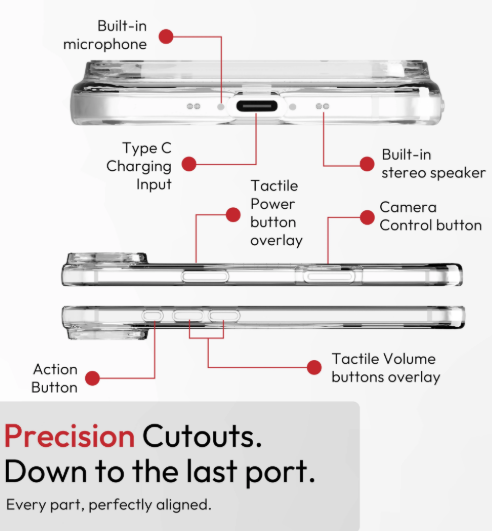

Physical Buttons & Ports

• Side button (right): Press to wake or sleep. Press and hold for Siri. Double‑press for Apple Pay.
• Action button (above volume buttons): Customizable shortcut. Default is Silent/Ring mode.
• Volume buttons (left): Adjust ringer and media volume.
• Camera Control button (below side button): Opens the camera and controls zoom, exposure, and focus.
• USB‑C port (bottom): For charging, data transfer, and accessories.

First‑Time Setup

1. Press and hold the Side button until the Apple logo appears.
2. Follow the on‑screen steps to choose your language, region, and connect to Wi‑Fi.
3. Transfer data from an old iPhone wirelessly or restore from an iCloud backup. Android users can use the “Move to iOS” app.
4. Sign in with your Apple ID. Enable Apple Intelligence when prompted (can be skipped and enabled later in Settings > Apple Intelligence & Siri).
5. Once on the Home Screen, go to Settings > General > Software Update and install any pending updates.

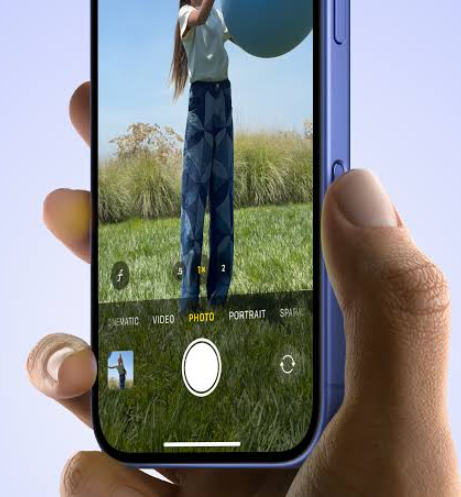

Camera Control & Camera Features

• Launch the camera: Press the Camera Control button once, even when locked.
• Take a photo: Press the button firmly until you feel a haptic click.
• Record a video: Press and hold the button. Release to stop.
• Zoom: In the Camera app, slide your finger along the Camera Control button to zoom smoothly.
• Light‑press for focus: Lightly press and hold the button to lock focus and exposure. Slide to adjust exposure.

The 48 MP main sensor uses pixel‑binning for 24 MP default photos with excellent dynamic range. For full‑resolution shots, enable 48 MP mode in the Camera app.

Customizing the Action Button

Go to Settings > Action Button. Swipe through the available actions: Silent mode, Focus, Camera, Flashlight, Voice Memo, Magnifier, Translate, Accessibility, Shortcuts, or No Action.

Apple Intelligence Features (iOS 20)

Once enabled in Settings, Apple Intelligence offers:

• Writing Tools: Summarize, rewrite, or proofread text in any app.
• Image Cleanup: Remove unwanted objects from photos in the Photos app.
• Genmoji: Create custom emoji by describing what you want.
• Smarter Siri: Siri can understand follow‑up questions and use personal context. The screen edge glows when Siri is active.

Troubleshooting & Common Problems

Frequently Asked Questions

• Does the iPhone Air come with a charger or headphones?
  No. The box includes only a USB‑C cable and a SIM tool.
• What is the Camera Control button?
  A new button on the right edge that opens the camera and controls zoom, focus, and exposure. It works even when the phone is locked.
• Is the iPhone Air waterproof?
  It has an IP68 rating, meaning it can withstand splashes and brief submersion in up to 6 metres of fresh water for 30 minutes. Avoid salt water and chlorinated pools.
• How do I take a screenshot?
  Press the Side button and the Volume Up button at the same time.
• Does the phone support satellite connectivity?
  Yes. Emergency SOS, Roadside Assistance, and Messages via satellite are available in select regions.
• How do I turn off Apple Intelligence?
  Go to Settings > Apple Intelligence & Siri and toggle it off. The AI models will be deleted from the device to free up storage.

Tips

• Customize the Action button: Assign it to a Shortcut that opens a menu of options (flashlight, camera, voice memo, and more) for one‑press access to multiple functions.
• Use Back Tap: Go to Settings > Accessibility > Touch > Back Tap and set a double‑ or triple‑tap on the back of the phone to trigger screenshots, flashlight, or any shortcut.
• Charge to 80%: Enable Optimized Battery Charging and the 80% Limit in Settings > Battery > Battery Health & Charging to slow battery ageing.

Safety Information

• Charging: Use Apple‑certified or reputable third‑party USB‑C adapters. Avoid cheap, unregulated chargers.
• Water exposure: The IP68 rating applies to fresh water only. Dry the USB‑C port before charging if the phone gets wet.
• Repairs: The iPhone Air uses a titanium frame and precision components. Repairs should be performed by Apple or an authorized service provider.
