Introduction
The Redmi Note 13 Pro+ 5G is a feature-packed smartphone that brings flagship-level photography, ultra-fast charging, and a premium curved display to the mid-range segment. It’s powered by the MediaTek Dimensity 7200 Ultra processor, features a 200MP main camera with OIS, and supports 120W HyperCharge. This guide covers setup, camera features, battery management, and common fixes.
Product Overview
The Redmi Note 13 Pro+ 5G measures 161.4 × 74.2 × 8.9 mm and weighs 199g. It has a 6.67-inch AMOLED curved display with 120Hz refresh and 1,800 nits peak brightness. The rear camera system includes a 200MP main sensor with OIS, an 8MP ultra-wide, and a 2MP macro. The front camera is 16MP. The battery is 5,000mAh with 120W wired charging. It runs MIUI 14 based on Android 13, with HyperOS upgrade available. It has IP68 water resistance and stereo speakers. Available colours: Midnight Black, Moonlight White, Aurora Purple.
Full Specifications
| Specification | Detail |
|---|---|
| Model | 23090RA98G (Redmi Note 13 Pro+ 5G) |
| Display | 6.67-inch AMOLED curved, 1220 x 2712 pixels, 120Hz refresh, 1,800 nits peak |
| Processor | MediaTek Dimensity 7200 Ultra (4nm) |
| RAM | 8GB / 12GB LPDDR5 |
| Storage | 256GB / 512GB UFS 3.1 (non-expandable) |
| Rear Camera | 200MP main (f/1.65, OIS) + 8MP ultra-wide (f/2.2, 120°) + 2MP macro (f/2.4) |
| Front Camera | 16MP (f/2.4) |
| Battery | 5,000mAh, 120W wired HyperCharge, no wireless charging |
| Operating System | MIUI 14 (Android 13), upgradeable to HyperOS |
| Water Resistance | IP68 |
| Fingerprint Sensor | Under-display (optical) |
| Face Unlock | Yes |
| Connectivity | 5G, Wi-Fi 6, Bluetooth 5.3, NFC, IR blaster, USB-C 2.0 |
| Audio | Stereo speakers, Dolby Atmos, no 3.5mm jack |
| Dimensions | 161.4 x 74.2 x 8.9 mm |
| Weight | 199g |
| Colours | Midnight Black, Moonlight White, Aurora Purple |
| Included Accessories | Phone, 120W charger, USB-C cable, clear case, SIM tool, quick start guide |
Key Features
- 200MP Main Camera with OIS: The Samsung HP3 sensor captures incredibly detailed photos. Pixel binning produces 12.5MP or 50MP images with excellent dynamic range. 4x in-sensor zoom provides lossless-quality crops.
- 120W HyperCharge: The included 120W charger refills the 5,000mAh battery from 0 to 100% in about 19 minutes. The phone intelligently manages heat during charging.
- 6.67-inch Curved AMOLED 120Hz: Sharp, vibrant, and smooth. The 1,800 nits peak brightness is great for outdoor use. Supports Dolby Vision and HDR10+.
- MediaTek Dimensity 7200 Ultra: A capable 4nm processor that handles gaming and multitasking with ease. 8GB or 12GB of RAM ensures smooth performance.
- IP68 Water & Dust Resistance: The first Redmi Note with IP68, providing protection against submersion in fresh water up to 1.5 metres for 30 minutes.
- MIUI 14 / HyperOS: Feature-rich software with customization options, Game Turbo, and AI tools. Xiaomi promises 3 years of major OS updates and 4 years of security patches.
- IR Blaster: Control TVs, air conditioners, and other appliances directly from the phone using the Mi Remote app.
How to Use
What’s in the Box
- Redmi Note 13 Pro+ 5G smartphone (with pre-applied screen protector)
- 120W HyperCharge power adapter
- USB-C charging cable
- Clear protective case
- SIM card ejector tool
- Quick Start Guide and warranty card
First-Time Setup
- Insert your nano-SIM(s) using the ejector tool. The tray holds two SIMs, no microSD.
- Press and hold the Power button (right edge) until the Xiaomi logo appears.
- Select language, region, and connect to Wi-Fi. Sign in with your Google account. Optionally sign into your Xiaomi account for cloud and theme services.
- Set up the under-display fingerprint sensor: go to Settings > Passwords & security > Fingerprint unlock.
- Once on the home screen, go to Settings > About phone > System update and install any pending updates.
- In Settings > Display, set Refresh rate to Custom and choose 120Hz for smooth scrolling.
Buttons & Ports
| Component | Location | Function |
|---|---|---|
| Power button | Right edge | Press to wake/sleep. Press and hold for Google Assistant. Double-press for camera. |
| Volume rocker | Right edge (above power) | Adjust media and ringer volume. |
| USB-C port | Bottom edge | Charging, data transfer, USB-C headphones. No headphone jack. |
| SIM tray | Bottom edge (left) | Two nano-SIMs. No microSD. |
| Fingerprint sensor | Under display (optical) | Register up to 5 fingerprints. |
| IR blaster | Top edge | Control appliances via Mi Remote app. |

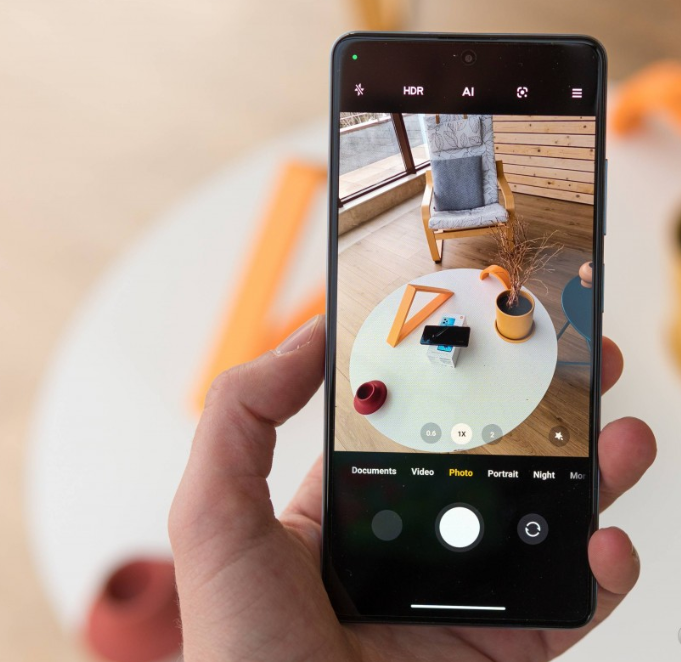

Camera Tips
- 200MP Mode: Tap the resolution icon and select 200MP. Use in bright light for ultra-detailed photos. For everyday shots, the default 12.5MP pixel-binned mode is faster and balances dynamic range.
- 4x In-Sensor Zoom: The 200MP sensor allows near-lossless 4x zoom by cropping. Tap the 4x preset for quality close-ups.
- Night Mode: The camera automatically enables Night mode in low light. Keep the phone steady for 2-3 seconds.
- Portrait Mode: The 200MP sensor with OIS creates natural bokeh. Adjust the background blur after taking the shot.
- Pro Mode: Swipe to More > Pro for manual control over ISO, shutter, white balance, and focus.
- Ultra-Wide 8MP: Use for landscapes and group shots. The 120° field of view captures more.
- Macro 2MP: For extreme close-ups within 4cm. Go to More > Macro.
Battery & Charging
- 120W HyperCharge: Use the included 120W charger and USB-C cable. The phone charges from 0 to 100% in about 19 minutes.
- Battery saver: Swipe down Quick Settings and tap Battery Saver. Set to activate at 20% or 30%.
- Battery health: The phone has built-in battery protection. Avoid draining to 0% frequently. Charge when below 20-30%.
- No wireless charging: The Redmi Note 13 Pro+ 5G does not support wireless charging. Use the wired charger for fastest results.
Troubleshooting & Common Problems
| Problem | Likely Cause | What to Try |
|---|---|---|
| Fingerprint sensor slow | Dirty screen, or dry finger | Clean the screen. Re-register fingerprints. Register the same finger twice. |
| 120W charging not working | Wrong charger or cable | Use the original 120W charger and Xiaomi USB-C cable. Check for debris in the port. |
| Camera app crashes | Software glitch, or low storage | Restart. Clear camera cache: Settings > Apps > Camera > Storage > Clear cache. |
| Battery drains quickly | 120Hz + high brightness, or rogue apps | Switch to 60Hz. Reduce brightness. Check battery usage. Turn on Ultra Battery Saver. |
| Wi-Fi or Bluetooth not connecting | Router or interference | Restart router and phone. Forget network and reconnect. For Bluetooth, toggle off/on and re-pair. |
| Phone overheats during gaming | Intensive load | Remove case, lower graphics, avoid direct sunlight. The phone will throttle to protect itself. |
| Face unlock not working | Low light, or front camera dirty | Clean front camera. Re-scan face. Use fingerprint as backup. |
| No sound from speakers | Debris, or Bluetooth connected | Clean speaker grilles. Disconnect Bluetooth devices. Check volume. |
Frequently Asked Questions
- Does the Redmi Note 13 Pro+ 5G have a headphone jack?
No, it uses USB-C audio or Bluetooth. - Can I expand storage?
No, there is no microSD slot. Choose 256GB or 512GB at purchase. - Is it waterproof?
Yes, IP68 rated for submersion in fresh water up to 1.5 metres for 30 minutes. - How do I take a screenshot?
Press the Power button and Volume Down together. For a scrolling screenshot, tap the “Capture more” button after capturing. - Does it support wireless charging?
No, the Redmi Note 13 Pro+ 5G does not support wireless charging. - How do I reset the phone?
Go to Settings > About phone > Factory reset. You’ll need your lock screen PIN.
Tips
- Use the IR blaster: Open the Mi Remote app to control your TV, AC, and set-top box. It’s a handy feature often missing from flagships.
- Enable Game Turbo: Add your games to Game Turbo for performance optimization, notification blocking, and touch tweaks.
- Use the 200MP camera for landscapes: The detail is amazing in good light. For portraits, use the 4x zoom for a flattering perspective.
- Customize Always-On Display: Go to Settings > Always-on display & Lock screen to choose from different clock styles and notification settings.
- Keep MIUI updated: Xiaomi frequently releases updates with bug fixes and new features. Check Settings > About phone > System update.
Safety Information
- Charging: Use the original Xiaomi 120W charger and cable. Do not use third-party chargers that do not support the required voltage/current. Avoid charging in very hot environments.
- Battery: Do not puncture or expose to fire. If the battery swells, stop using and contact Xiaomi.
- Water resistance: IP68 applies to fresh water only. Dry the USB-C port before charging if wet.
- Screen: The curved AMOLED is durable, but use a case to protect edges. A tempered glass protector is recommended.
- Children: Keep the SIM tool and small parts away from children.
