Ninja AF161 Air Fryer Max XL Manual

Introduction

The Ninja AF161 Air Fryer Max XL is a 5.5-quart air fryer that has remained one of the best-selling kitchen appliances on Amazon for years. It’s a 7-in-1 device that can Max Crisp, Air Fry, Air Roast, Air Broil, Bake, Reheat, and Dehydrate—replacing multiple kitchen appliances with one countertop unit. Unlike a traditional deep fryer, it circulates super-hot air around your food to remove moisture from the surface, giving you a golden-brown, crispy finish with little to no oil.

This manual is built from the official Ninja owner’s guide, support documentation, and real-world usage data. It covers every function, temperature setting, cooking chart, cleaning method, and troubleshooting step you need to get perfect results every time. Whether you just unboxed your AF161 or you’ve owned it for months, this guide has the answers most quick-start guides leave out.

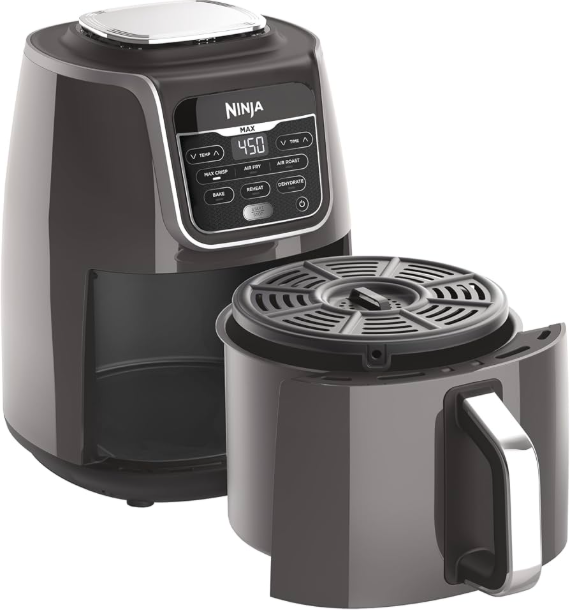

Product Overview

The Ninja AF161 is a compact but spacious air fryer with a 5.5-quart basket capacity—enough to fit up to 3 pounds of fries. It has a 1750-watt heating system with a temperature range from 105°F (for Dehydrate) to 450°F (for Max Crisp and Broil). The basket and crisper plate are made of aluminum with a nonstick ceramic coating, and the exterior is BPA-free, FDA-approved food-safe plastic.

The unit features a digital control panel with dedicated function buttons for each cooking mode, plus up/down arrows for time and temperature adjustment. The basket pulls out easily and automatically pauses cooking when removed, so you can shake or check your food without losing your settings. The AF161 is a standalone air fryer—it does not include a pressure cooker or steam function like Ninja’s Combi models.

Specifications & Features

Full Specifications

Key Features

• 7-in-1 Cooking Functions: Max Crisp, Air Fry, Air Roast, Air Broil, Bake, Reheat, and Dehydrate. The AF161 includes all functions, including Max Crisp and Air Broil.
• Max Crisp (450°F): The highest temperature setting, designed to make frozen foods extra crispy—fries, nuggets, and pizza rolls come out with a deep golden crunch.
• Air Fry: The everyday function for cooking with little to no oil. Default temperature varies by recipe; adjustable from 105°F to 400°F.
• Air Roast: For meats and vegetables that need a longer cook time with a crispy exterior. Default temperature is 375°F.
• Air Broil: For melting cheese, finishing casseroles, or charring vegetables. Uses top-down heat at up to 450°F.
• Bake: For cakes, muffins, and pastries. Default temperature is 350°F. Timer increments: 1-minute for first 30 minutes, then 5-minute for the next 3.5 hours.
• Reheat: For bringing leftovers back to life. Default temperature is 300°F. Timer: 1-minute increments up to 1 hour.
• Dehydrate: For making jerky, dried fruit, and vegetable chips. Temperature range: 105°F to 195°F. Timer: 15-minute increments up to 12 hours.
• Crisper Plate: The included crisper plate elevates ingredients in the basket so air can circulate underneath, ensuring consistent browning on all sides. Use it every time you air fry.
• Auto-Pause When Basket Removed: Pulling the basket out automatically pauses the timer and shuts off the heater and fan. Slide it back in, and cooking resumes exactly where it left off.
• Nonstick Ceramic-Coated Basket: The basket and crisper plate are dishwasher-safe and easy to clean. The ceramic coating resists sticking and requires minimal oil.

Safety Information

• Read all instructions before using your Ninja Air Fryer Max XL.
• Keep out of reach of children: This appliance can be used by persons with reduced physical, sensory, or mental capabilities only with supervision and instruction. Children shall not play with the appliance.
• Never use an electrical socket below the counter.
• Do not use an extension cord. A short power-supply cord is provided to reduce risks.
• Do not immerse cord, plugs, or main unit housing in water or other liquid. Cook only in the ceramic-coated basket provided.
• Regularly inspect the appliance and power cord. Do not use if there is damage to the power cord or plug. If the appliance malfunctions or has been damaged, immediately stop use and call Customer Service.
• Ensure the appliance is properly assembled before use.
• Do not cover the air intake vent or air socket vent while the unit is operating. Doing so will prevent even cooking and may damage the unit or cause it to overheat..
• Do not place the appliance near the edge of a worktop during operation.
• Do not use accessory attachments not recommended or sold by SharkNinja.
• Do not place the appliance in or near a microwave, toaster oven, convection oven, conventional oven, ceramic cooktop, electrical coil, gas burner range, or outdoor grill.
• Provide adequate space above and on all sides for air circulation.
• Do not use the appliance without the removable ceramic-coated cooking basket installed.
• Do not use this appliance for deep-frying.
• Prevent food contact with heating elements. Do not overfill when cooking.
• If the unit emits black smoke, unplug immediately. Wait for smoking to stop before removing any cooking accessories.
• Do not touch hot surfaces. Appliance surfaces are hot during and after operation.

How to Use

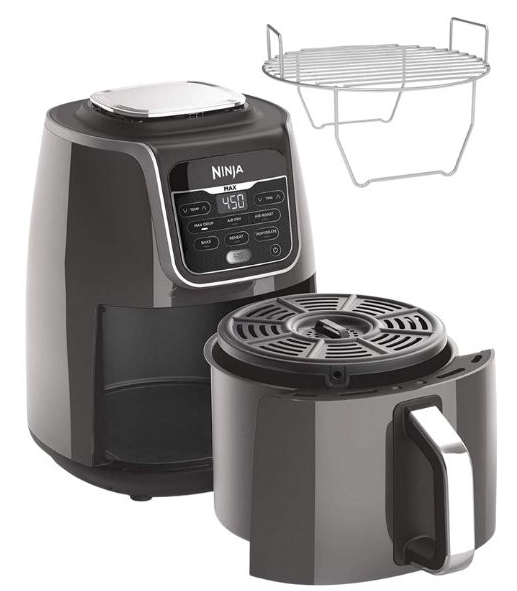

What’s in the Box

• Ninja AF161 Air Fryer Max XL unit
• 5.5-quart ceramic-coated basket
• Crisper plate
• Owner’s guide and quick-start guide

Before First Use

1. Remove all packaging: Remove any tape, stickers, and protective film from the unit and basket.
2. Wash the basket and crisper plate: Wash both in warm, soapy water or place them in the dishwasher. Dry thoroughly.
3. Wipe the main unit: Wipe the exterior and control panel with a damp cloth. Never immerse the main unit in water.
4. Place the unit: Set it on a level, stable, heat-resistant surface. Ensure adequate space above and on all sides for air circulation. Do not place it near the edge of a countertop.

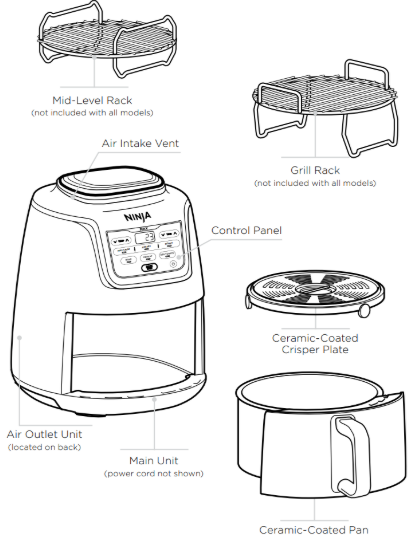

Physical Controls

Using the Cooking Functions

Step 1: Preheat (Recommended)
For best results, preheat the unit for 3 minutes before adding ingredients. To preheat, simply add an additional 3 minutes to your total cook time and allow the unit to come up to temperature before adding ingredients.

Step 2: Install the Crisper Plate
Place the crisper plate inside the basket. The crisper plate promotes overall browning by elevating food so air can circulate underneath.

Step 3: Add Ingredients
Arrange ingredients in an even layer on the bottom of the basket with no overlapping. For best results with fresh vegetables and potatoes, use at least 1 tablespoon of oil.

Step 4: Select a Function
Press the desired function button (Max Crisp, Air Fry, Air Roast, etc.). The default temperature will display.

Step 5: Set Time and Temperature
Use the TEMP up and down arrows to set your desired temperature. Use the TIME up and down arrows to set the cook time. Cook time and temperature can be adjusted at any time during cooking.

Step 6: Start Cooking
Press START/PAUSE to begin. The unit will begin heating.

Step 7: Shake or Toss
For consistent browning, shake or rotate your food halfway through the set cook time. The recipe or cooking chart will tell you how often to shake.

Step 8: Remove Food
When cooking is complete, the unit will beep and “END” will appear on the display. Remove food immediately to avoid overcooking. Use silicone-tipped tongs to avoid scratching the ceramic coating.

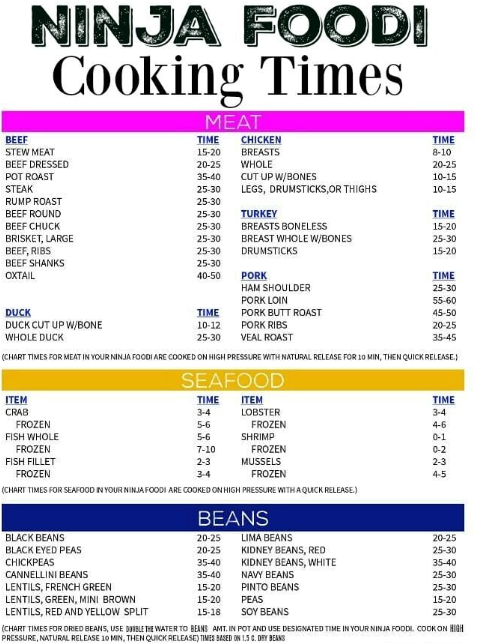

Cooking Chart

Conversion Tip: To convert recipes from a conventional oven, reduce the temperature of the air fryer by 25°F. Check food frequently to avoid overcooking.

Cleaning & Maintenance

Daily Cleaning

1. Unplug the unit: Always unplug the air fryer from the wall outlet before cleaning.
2. Let it cool: Allow the unit to cool completely before cleaning.
3. Remove the basket: Pull the basket out of the unit.
4. Wash the basket and crisper plate: Both are dishwasher-safe. For hand washing, use warm, soapy water and a non-abrasive sponge. If food residue is stuck, soak them in warm, soapy water before washing.
5. Wipe the main unit: Wipe the exterior and control panel with a damp cloth. Never immerse the main unit in water or any other liquid. Never clean the main unit in a dishwasher.
6. Dry all parts: Air-dry or towel-dry all parts after use.

Deep Cleaning (Monthly)

• Clean the heating element: Unplug the unit and turn it upside down. Wipe the heating element with a damp cloth or soft brush. Do not use abrasive cleaners.
• Check the exhaust vent: Ensure the exhaust vent on the back of the unit is free of dust and debris.
• Descale if needed: If you notice white deposits on the heating element, wipe it with a cloth dampened with white vinegar, then wipe clean with a damp cloth.

Troubleshooting & Common Problems

Error Codes

Frequently Asked Questions

• What is the capacity of the Ninja AF161?
  It has a 5.5-quart capacity, which fits up to 3 pounds of fries.
• What is the temperature range?
  The temperature ranges from 105°F (for Dehydrate) to 450°F (for Max Crisp and Broil)..
• Can I use parchment paper or aluminum foil?
  Yes. Parchment paper and aluminum foil are safe to use in the basket. The use of aluminum foil is suggested in some recipes.
• Do I have to shake the basket while cooking?
  Yes. It is important to shake or rotate your food for consistent browning and crispiness. Follow the recipe or cooking chart for shaking frequency.
• Do I need to use oil?
  Oil is not required, but Ninja recommends starting with 1 tablespoon and adjusting for personal preference.
• Does the unit pause when I pull out the basket?
  Yes. Cooking automatically pauses when the basket is removed. The timer pauses, and the heater and fan shut off. Slide the basket back in, and cooking resumes.
• What materials are the basket and crisper plate made of?
  The basket and crisper plate are made of aluminum with a nonstick ceramic coating.
• Will the outside of the unit get hot?
  The exterior will heat up during cooking, but the control panel and basket handle remain safe to touch.
• How do I clean the air fryer?
  Unplug the unit and let it cool. Wash the basket and crisper plate in the dishwasher or by hand with warm
• What is the warranty on the Ninja AF161?
  It comes with a 1-year limited warranty.
• Can I convert conventional oven recipes for the air fryer?
  Yes. Reduce the temperature by 25°F and check food frequently to avoid overcooking.

Tips

• Preheat for 3 minutes: For best results, preheat the unit for 3 minutes before adding ingredients. Add an additional 3 minutes to your cook time.
• Use the crisper plate every time: The crisper plate elevates food so air can circulate underneath, ensuring consistent browning on all sides.
• Don’t overcrowd the basket: Arrange ingredients in an even layer with no overlapping. If ingredients are overlapping, shake them halfway through cooking.
• Use at least 1 tablespoon of oil for fresh vegetables: Oil helps with browning and crisping. Add more oil as desired.
• Shake or toss frequently: For consistent browning, shake or rotate food halfway through the set cook time.
• Secure lightweight foods: Occasionally, the fan will blow lightweight foods around. Secure foods with toothpicks.
• Remove food immediately: For best results, remove food immediately after the cook time is complete to avoid overcooking.
• Use an instant-read thermometer: For proteins, use a thermometer to check that food is cooked to recommended internal temperatures.
• Clean after every use: The unit should be cleaned thoroughly after every use to prevent residue buildup and smoke.
• Soak stubborn residue: If food residue is stuck on the crisper plate or basket, soak them in warm, soapy water before washing.

PDF Resources

For the official PDF manual and additional documentation, visit:

• Ninja AF160 Series FAQs: https://support.sharkninja.com/article/AF160-Series-Ninja-Air-Fryer-Max-XL-FAQs
• Ninja AF160 Series Troubleshooting Guide: https://support.sharkninja.com/article/AF160-Series-Ninja-Air-Fryer-Max-XL-Troubleshooting-Guide

You can also save this guide as a PDF by opening it in your browser and using File > Print > Save as PDF.
