Product Overview

The Samsung Galaxy S23 Ultra combines a built‑in S Pen, a 200 MP quad camera, and a large 6.8‑inch QHD+ Dynamic AMOLED 2X display in a single device. It’s powered by the Snapdragon 8 Gen 2 for Galaxy processor, which is optimised for gaming, multi‑tasking, and AI‑driven photo processing. The 5,000 mAh battery provides all‑day endurance, and the titanium‑reinforced frame adds durability. The phone runs One UI 6.1 on Android 14 and ships with Galaxy AI features including Circle to Search, Note Assist, and Generative Edit. It’s available in Phantom Black, Green, Cream, and Lavender.

Key Features

• Built‑in S Pen: Stores in the bottom‑left silo and charges wirelessly when inserted. It supports 4,096 pressure levels, air actions (remote camera shutter, presentation control), and screen‑off memo.
• 200 MP Quad Camera: The main 200 MP sensor uses pixel binning for detailed 12 MP or 50 MP photos. A 12 MP ultra‑wide, a 10 MP 3x telephoto, and a 10 MP 10x periscope telephoto complete the system. Optical stabilization (OIS) on both telephoto lenses keeps long‑range shots sharp.
• Snapdragon 8 Gen 2 for Galaxy: Delivers faster ray tracing for games, improved Nightography processing, and efficient battery usage. Galaxy AI features run smoothly on‑device.
• 6.8‑inch QHD+ 120 Hz AMOLED 2X: The display peaks at 1,750 nits brightness. It adapts from 1 Hz to 120 Hz depending on content. Vision Booster adjusts contrast and colour in direct sunlight.
• Galaxy AI (One UI 6.1): Circle to Search (long‑press the Home button and draw around anything on screen), Live Translate (real‑time call and text translation), Note Assist (auto‑format and summarize Samsung Notes), and Generative Edit (resize or remove objects in photos).
• 5,000 mAh Battery & 45 W Charging: Supports 45 W wired USB‑C PD fast charging, 15 W wireless charging, and 4.5 W Wireless PowerShare. A full charge takes about 65 minutes with a 45 W charger (sold separately).
• IP68 Water & Dust Resistance: Can be submerged in fresh water up to 1.5 metres for 30 minutes.

How to Use

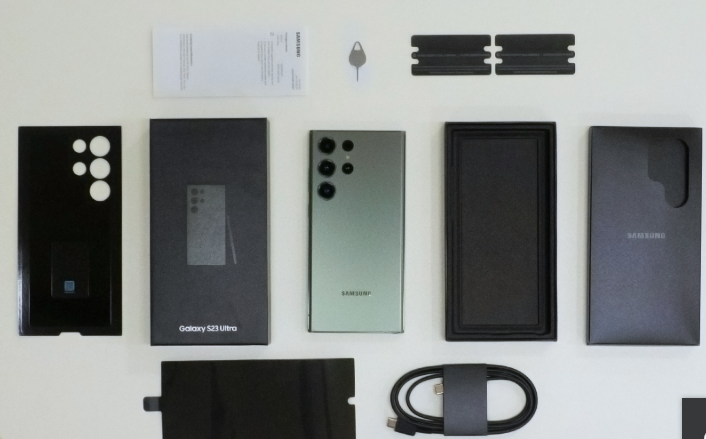

What’s in the Box

• Samsung Galaxy S23 Ultra (with a pre‑installed screen protector on some models)
• USB‑C to USB‑C cable
• SIM card ejector tool
• Quick‑Start Guide and warranty card

No charger, S Pen replacement tips, or case are included. Use any USB‑C PD charger (45 W recommended for fast charging).

First‑Time Setup

1. Press and hold the Side button (right edge) until the Samsung logo appears.
2. Select your language, connect to Wi‑Fi (Wi‑Fi 6E supported), and sign in with your Google and Samsung accounts.
3. Use Smart Switch to transfer data from an old Android phone or iPhone (wired or wireless).
4. Once on the Home screen, go to Settings > Software update and install any pending updates.
5. In Settings > Display, set Motion smoothness to Adaptive for 120 Hz, and Screen resolution to QHD+ for the sharpest image.

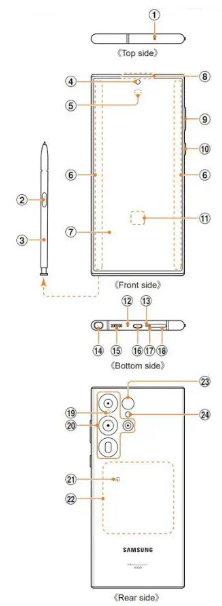

Buttons, Ports & Fingerprint Sensor

S Pen Features & Air Actions

• Remove the S Pen: Press the end of the pen to pop it out. The Air Command menu appears automatically.
• Screen‑off Memo: Pull out the S Pen while the screen is off and write directly on the black screen. Tap Save to store in Samsung Notes.
• Air Actions: Press and hold the S Pen button and make gestures in the air: single press to take a photo, double press to switch cameras, swipe left/right for gallery or music control. Enable and customize in Settings > Advanced features > S Pen > Air actions.
• Translate: Hover the S Pen over text on screen, tap the T icon, and a translation appears. Works in most apps and web pages.

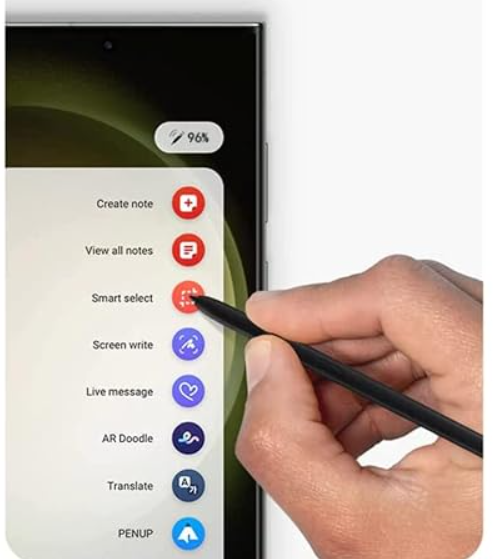

• Smart Select: Tap the Smart Select icon in Air Command, then draw a box around anything on screen to extract text, create a GIF, or pin it as a floating note.

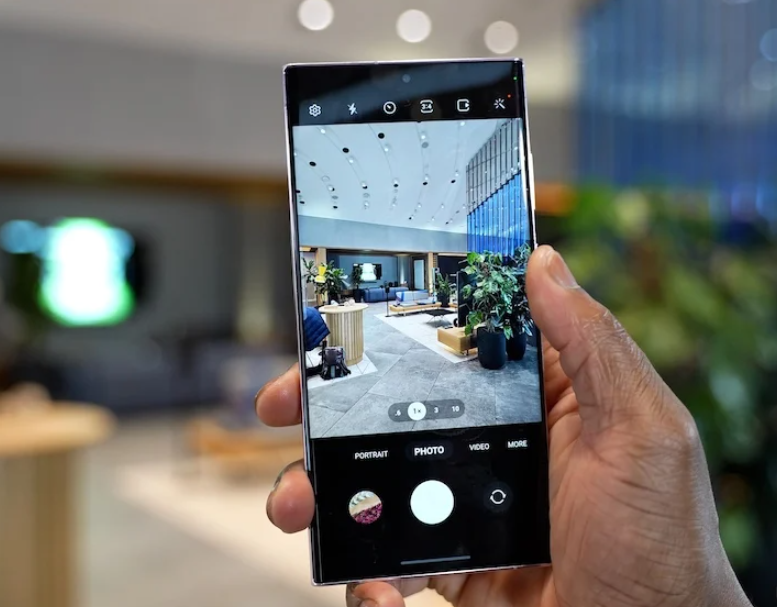

Camera Tips

• 200 MP mode: Tap the aspect ratio icon and select 3:4 200 MP. Use in daylight for extreme detail. For everyday shots, the default 12 MP mode is faster and uses less storage.
• 10x optical telephoto: Tap the 10x preset for lossless zoom. The periscope lens with OIS keeps distant subjects sharp. 30x and 100x Space Zoom are available, using AI to enhance detail.
• Nightography: The camera automatically enables Night mode in low light. For the best astrophotography shots, download the Expert RAW app (Galaxy Store) and use the Astrophoto mode.
• Portrait video: Select Portrait Video from the More menu. Adjust background blur in real time. The telephoto cameras create a natural perspective for video portraits.
• Pro Video: Manual control over ISO, shutter speed, focus, white balance, and audio direction (front, rear, surround, or Bluetooth mic).
• Quick launch: Double‑press the Side button to open the camera.

Galaxy AI Features (One UI 6.1)

• Circle to Search: Long‑press the Home button (or the gesture bar), then draw a circle around anything on screen – a product, landmark, text, or image. Google Search results appear instantly.
• Live Translate: During a phone call or in text messages, the phone translates spoken and written words in real time. Activate in Settings > Advanced features > Live Translate.
• Note Assist: In Samsung Notes, tap the Galaxy AI icon to auto‑format, summarize, or translate your notes.
• Generative Edit: In the Gallery, tap the AI icon to resize, remove, or reposition objects in photos. The phone fills in the background automatically.

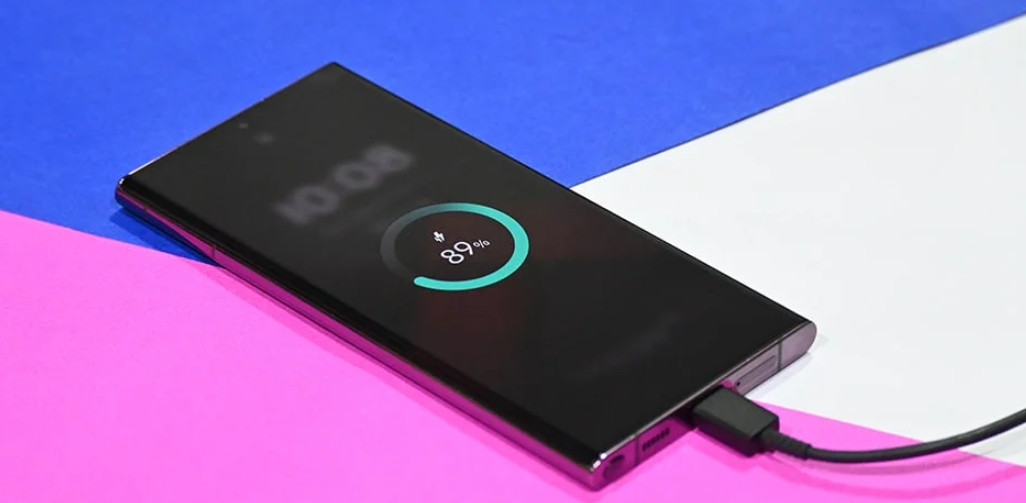

Battery & Charging

• Battery capacity: 5,000 mAh. Lasts a full day with heavy use.
• Wired charging: Supports up to 45 W USB‑C PD fast charging. A compatible 45 W charger gives 65% in 30 minutes.
• Wireless charging: Up to 15 W with a Qi‑compatible pad. Wireless PowerShare lets you charge another device (Galaxy Buds, Watch) on the back of the phone.
• Battery protection: Go to Settings > Battery and device care > Battery > More battery settings > Protect battery to cap charging at 85% for long‑term battery health.

Troubleshooting & Common Problems

Common Problems Quick List

• Screen flickering at low brightness: This may occur with adaptive refresh rate. Switch to Standard (60 Hz) temporarily. Update the software.
• No sound during calls: Check that the earpiece speaker is clean and not blocked. Ensure Bluetooth audio is not routed to another device.
• Wireless charging not working: Centre the phone on the pad. Remove any thick cases, metal rings, or credit cards between the phone and charger.

Frequently Asked Questions

• Does the S23 Ultra have a headphone jack?
  No. Use Bluetooth headphones or a USB‑C to 3.5 mm adapter.
• Can I expand storage with a microSD card?
  No, the S23 Ultra does not have a microSD card slot. Choose the 256 GB, 512 GB, or 1 TB variant at purchase.
• Is the phone waterproof?
  It has an IP68 rating, meaning it can withstand submersion in fresh water up to 1.5 metres for 30 minutes. Avoid salt water and chlorinated pools.
• How do I take a screenshot?
  Press the Side button and Volume Down button at the same time. For a scrolling screenshot, tap the arrow icon after capturing.
• Does the S23 Ultra support wireless charging?
  Yes, up to 15 W fast wireless charging, and it can also charge other devices via Wireless PowerShare.
• How do I reset the phone?
  Go to Settings > General management > Reset > Factory data reset. You’ll need your lock screen PIN or password.

Tips

• Use the S Pen as a remote camera shutter: Open the Camera app, pull out the S Pen, and press the button once to take a photo, twice to switch cameras.
• Expert RAW: Download the free Expert RAW app from the Galaxy Store for 16‑bit RAW photos, multi‑exposure HDR, and astrophotography mode.
• Customise the Side key: Go to Settings > Advanced features > Side key and set Double press to open any app, and Press and hold to show the power off menu instead of Bixby.
• Extend battery life: Use the Light performance profile (in Settings > Battery and device care > Battery > Performance profile) for daily tasks. It slightly reduces peak CPU speed but greatly improves battery endurance.
• Keep the phone updated: Samsung provides security patches and One UI updates regularly. Check Settings > Software update monthly.

Safety Information

• Charging: Use Samsung‑certified or reputable third‑party USB‑C PD chargers. Avoid using the phone while fast‑charging in direct sunlight or very hot environments.
• Battery: Do not puncture, drop, or expose the battery to high heat. If the battery swells, stop using the phone immediately and contact Samsung support.
• S Pen: The S Pen tip is replaceable. Use the metal removal tool (included in some replacement kits) to pull out the old nib and insert a new one. Do not insert the S Pen backwards.
• Screen: The S23 Ultra uses Gorilla Glass Victus 2 on both sides. It’s durable, but a screen protector adds extra protection.
• Water resistance: The IP68 rating applies to fresh water only. Dry the USB‑C port before charging if the phone gets wet.
• Repairs: The glass back and internal components are deeply integrated. Repairs should be performed by Samsung or an authorized service centre.
