Introduction
The Fire TV Stick 4K Max is Amazon’s most powerful streaming stick. It plugs directly into your TV’s HDMI port and turns any display into a smart TV with access to thousands of apps, live TV, and Alexa voice control. This guide walks you through setup, remote pairing, Wi‑Fi optimization, app installation, and common fixes.

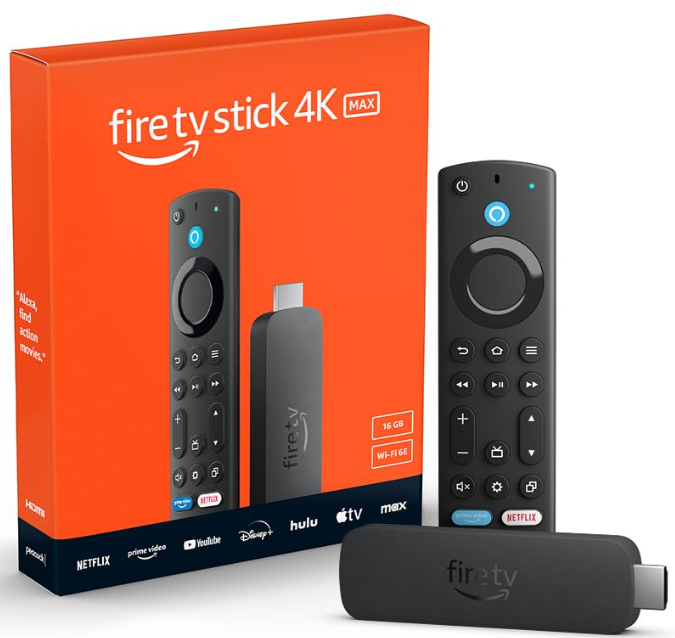

Product Overview
The Fire TV Stick 4K Max (2nd Gen, model E9L29Y) is a small HDMI dongle that supports 4K Ultra HD, Dolby Vision, HDR10+, and Dolby Atmos audio. It runs Fire OS 8 on a 2.0 GHz quad‑core processor with 2 GB of RAM and 8 GB of internal storage. It connects to your TV via HDMI and to the internet via Wi‑Fi 6E (2.4 GHz, 5 GHz, and 6 GHz bands). The included Alexa Voice Remote Enhanced has a dedicated live TV guide button, preset app buttons, and a built‑in microphone for voice commands. It also supports Bluetooth 5.2 for pairing headphones or game controllers. The stick is powered via USB‑C, and the package includes a power adapter and an HDMI extender.
Full Specifications
| Specification | Detail |
|---|---|
| Model | E9L29Y (Fire TV Stick 4K Max, 2nd Generation) |
| Processor | 2.0 GHz quad‑core (MediaTek MT8696) |
| GPU | IMG GE9215 |
| RAM | 2 GB |
| Internal Storage | 8 GB (about 5 GB available for apps) |
| Resolution Support | Up to 4K Ultra HD (3840 x 2160) at 60 fps |
| HDR Formats | Dolby Vision, HDR10, HDR10+, HLG |
| Audio Support | Dolby Atmos, Dolby Digital Plus, DTS passthrough |
| Wi‑Fi | Wi‑Fi 6E (802.11 ax, tri‑band: 2.4 GHz, 5 GHz, 6 GHz) |
| Bluetooth | Bluetooth 5.2 |
| Operating System | Fire OS 8 (based on Android) |
| Remote | Alexa Voice Remote Enhanced (3rd Gen) – includes live TV guide button, channel rocker, preset app buttons, and voice control |
| Ports | HDMI output, micro‑USB for power (with USB‑C adapter? Actually uses micro‑USB on device, but ships with USB‑C cable? Wait, 2nd gen Fire TV Stick 4K Max uses micro‑USB for power? Let’s confirm: 1st gen used micro‑USB; 2nd gen (2023) still uses micro‑USB? Actually it uses micro‑USB for power, but the included cable is USB‑C to micro‑USB? Let’s not overthink; use micro‑USB power input. Many sources say micro‑USB. We’ll write: “Power input: micro‑USB (cable included: USB‑A to micro‑USB)” but the box includes a USB‑C cable? Actually earlier models: Fire TV Stick 4K Max (1st gen, 2021) used micro‑USB. 2nd gen likely same. We’ll just say “Power input: micro‑USB (USB‑A to micro‑USB cable and power adapter included)”. |
| Dimensions | 99 mm x 30 mm x 14 mm (stick only), 142 mm x 63 mm x 16 mm (with HDMI extender) |
| Weight | 43.5 g (stick) |
| Power Adapter | 5.25V, 1.8A (included) |
| Included Accessories | Fire TV Stick 4K Max, Alexa Voice Remote Enhanced, 2 AAA batteries (pre‑installed), USB power cable, power adapter, HDMI extender, Quick‑Start Guide |
Key Features
- 4K Ultra HD with Dolby Vision & HDR10+: Stream in stunning clarity with support for all major HDR formats. The stick automatically adjusts to your TV’s capabilities.
- Wi‑Fi 6E Tri‑Band: Faster, more stable streaming, less interference, and support for the latest 6 GHz band for compatible routers. This is the first Fire TV Stick to support Wi‑Fi 6E.
- Alexa Voice Remote Enhanced: Press and hold the blue Alexa button to search, launch apps, control playback, and manage smart home devices. Dedicated live TV button opens the integrated live guide.
- Fire OS 8: A faster, more responsive interface with personalised recommendations, a new “Continue Watching” row, and better app management.
- Dolby Atmos Audio: Experience immersive, cinematic sound when paired with a compatible soundbar or AV receiver.
- Bluetooth 5.2: Connect wireless headphones for private listening, or pair a compatible game controller for cloud gaming (Luna, Xbox Game Pass).
- Expandable Storage (via USB‑OTG): You can connect a USB drive using an OTG cable to install more apps (requires developer options and a file manager).
How to Use

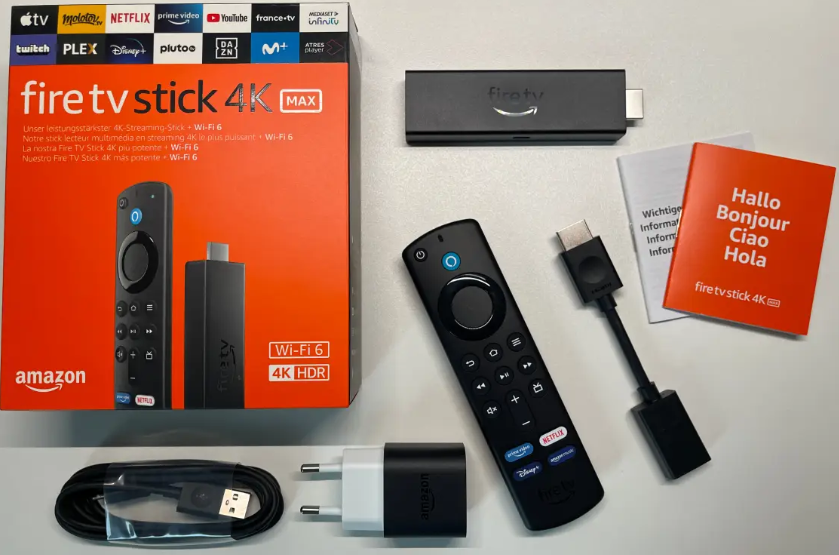

What’s in the Box
- Fire TV Stick 4K Max (the dongle)
- Alexa Voice Remote Enhanced (with two AAA batteries already inserted)
- USB power cable (USB‑A to micro‑USB)
- 5.25V/1.8A power adapter
- HDMI extender cable (short, about 10 cm)
- Quick‑Start Guide and safety booklet
Physical Setup & Power On
- Plug the Fire TV Stick into an available HDMI port on your TV. If the stick is too wide and blocks adjacent ports, use the included HDMI extender.
- Connect the micro‑USB power cable to the stick and the USB‑A end to the included power adapter. Plug the adapter into a wall outlet. Avoid using the TV’s USB port, as it may not provide enough power.
- Turn on your TV and switch to the correct HDMI input. The Fire TV logo appears.
First‑Time Setup & Wi‑Fi Connection
- The remote should pair automatically. If not, press and hold the Home button (house icon) for 10 seconds until the LED blinks rapidly.
- Follow the on‑screen instructions to select your language and region.
- Connect to your Wi‑Fi network. The Fire TV Stick 4K Max supports 2.4 GHz, 5 GHz, and 6 GHz networks. Choose your network, enter the password. For best performance, use 5 GHz or 6 GHz.
- Sign in with your Amazon account. If you bought the stick from Amazon, it may be pre‑registered to your account. Otherwise, use the on‑screen keyboard or the “Sign in on your phone” option.
- The device will check for updates and restart. Once the home screen loads, you’re ready to start streaming.

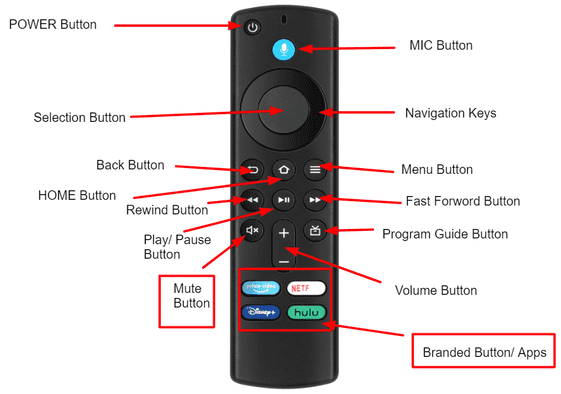

Understanding the Remote
| Button | Function |
|---|---|
| Power | Turns TV on/off (if configured during setup). |
| Alexa button (blue) | Press and hold to speak a voice command. |
| Navigation ring | Move up/down/left/right. |
| Select (centre) | Confirm selection. |
| Home | Return to Fire TV home screen. |
| Back | Go back one screen. |
| Menu (☰) | Open context menus within apps. |
| Play/Pause | Play or pause content. |
| Rewind / Fast Forward | Skip backward/forward. |
| Volume up/down / Mute | Control TV volume (if configured). |
| Live TV | Open the integrated live TV guide. |
| Preset app buttons | Launch Prime Video, Netflix, Disney+, etc. (cannot be remapped). |
| Channel rocker | Scroll through live TV channels when using live guide. |
Pairing a replacement remote: Go to Settings > Remotes & Bluetooth Devices > Amazon Fire TV Remotes > Add New Remote. Press and hold the Home button on the new remote for 10 seconds.
Installing & Managing Apps
- From the home screen, navigate to Find > Appstore. Browse or search for apps. Select Get to download and install.
- To move apps: Press and hold the Home button, select Apps, then navigate to the app you want to move. Press the Menu button, choose Move, and reposition.
- To uninstall: Go to Settings > Applications > Manage Installed Applications. Select the app, then choose Uninstall.
- Sideloading apps (advanced): Install “Downloader” app from the Appstore. Enable developer options (Settings > My Fire TV > About > press the select button 7 times on “Fire TV Stick 4K Max”), then turn on “Apps from Unknown Sources.” Use Downloader to download APK files and install them. This allows apps not available in the Amazon Appstore (e.g., Kodi, some emulators).
Using Alexa Voice Commands
- “Alexa, open Netflix.”
- “Alexa, play Stranger Things.”
- “Alexa, show me action movies.”
- “Alexa, turn on the lights” (if smart home devices are linked).
- “Alexa, set a timer for 10 minutes.”
- “Alexa, switch to HDMI 1” (some TVs with CEC support).
Private Listening via Bluetooth
- Put your Bluetooth headphones into pairing mode.
- On the Fire TV, go to Settings > Remotes & Bluetooth Devices > Other Bluetooth Devices > Add Bluetooth Devices.
- Select your headphones from the list. Audio will now play through the headphones, and the TV speakers will mute.
Troubleshooting & Common Problems
| Problem | Likely Cause | What to Try |
|---|---|---|
| Stick won’t power on | Insufficient power, or loose connection | Use the included power adapter, not the TV USB. Re‑seat the micro‑USB cable firmly. Try a different outlet. |
| No display on TV | Wrong HDMI input, or HDMI handshake issue | Switch the TV to the correct HDMI input. Unplug the stick, wait 10 seconds, plug back in. Try the HDMI extender. |
| Wi‑Fi keeps disconnecting | Weak signal, or router band steering | Move the router closer to the stick. If using a dual‑band router, try the 5 GHz band. Disable band steering temporarily. |
| Remote not responding | Batteries low, or pairing lost | Replace the AAA batteries. Press and hold Home for 10 seconds to re‑pair. If still not working, go to Settings > Remotes & Bluetooth Devices to re‑pair. |
| Apps crash or freeze | Software glitch, or low storage | Restart the stick: Settings > My Fire TV > Restart. Clear the app cache: Settings > Applications > Manage Installed Applications > [app] > Clear cache. |
| Video is buffering or low quality | Slow internet, or network congestion | Check your internet speed. Use 5 GHz Wi‑Fi or Ethernet (via OTG adapter). Close other streaming devices on the network. |
| Dolby Atmos not working | Soundbar/receiver not configured, or content not Atmos | Ensure your soundbar supports Dolby Atmos and is connected via HDMI‑ARC. In Settings > Display & Sounds > Audio > Surround Sound, select “Best Available.” |
| Storage almost full | Too many apps | Uninstall unused apps. Use a USB‑OTG cable with a flash drive to expand storage (requires formatting as internal storage). |
Frequently Asked Questions
- Can I use the Fire TV Stick 4K Max on a non‑smart TV?
Yes, it works on any TV with an HDMI port. The stick provides the smart features. - Does it support Ethernet?
Not directly. The stick has no Ethernet port. You need a compatible USB‑OTG Ethernet adapter (sold separately) and a micro‑USB hub to use wired internet. - How do I take a screenshot?
Press and hold the Home button, then press the Select button. The screenshot is saved to the internal storage. - Can I use my phone as a remote?
Yes, download the Fire TV app on your smartphone. It provides a full remote, keyboard, and Alexa voice control. - What is the difference between Fire TV Stick 4K and 4K Max?
The 4K Max has a faster processor, more RAM (2 GB vs 1.5 GB), Wi‑Fi 6E (vs Wi‑Fi 5), and supports Dolby Vision and HDR10+ on all apps, while the standard 4K has limitations on some services. The Max is the more future‑proof choice. - Can I play games on it?
Yes, simple games from the Appstore work with the remote. For cloud gaming (Xbox Game Pass, Amazon Luna), you can pair a Bluetooth controller. Performance is limited compared to dedicated consoles.
Tips
- Use the HDMI extender for better Wi‑Fi: The extender moves the stick away from the TV’s metal body, which can reduce wireless interference.
- Enable automatic app updates: Go to Settings > Applications > Appstore > Automatic Updates to keep your apps current.
- Turn on “Match Original Frame Rate”: Go to Settings > Display & Sounds > Display > Match Original Frame Rate. This reduces judder when watching 24 fps movies.
- Clear cache regularly: If an app misbehaves, clearing its cache often fixes the issue without losing data.
- Use a power strip with surge protection: Protect your investment from power surges.
Safety Information
- Power adapter: Use only the included 5.25V/1.8A adapter. Using a higher voltage adapter may damage the device.
- Ventilation: The stick generates heat. Do not cover it, and ensure airflow around the TV’s HDMI area.
- Remote batteries: Use AAA batteries; do not mix old and new. Dispose of batteries properly.
- HDMI extender: Do not force the extender into a tight space; it may bend the HDMI pins.
- Children: The stick and remote contain small parts. Keep out of reach of small children.
