How to use Braun Series 9 Pro+
Introduction
The Braun Series 9 Pro+ is Braun’s most advanced electric shaver, designed for men who demand the closest, most comfortable shave possible. It features five synchronized shaving elements, an integrated precision ProTrimmer, and the innovative ProComfort head that lifts and prepares hair before shaving. Powered by AutoSense technology and Pro SensoAdapt, it analyzes beard density 300 times per second and automatically adjusts power for maximum efficiency. The Series 9 Pro+ comes with the 6-in-1 SmartCare Center that cleans, dries, charges, and lubricates your shaver at the touch of a button. This manual covers everything from unboxing and first-time setup to using the ProComfort head, maintaining the SmartCare Center, and troubleshooting common issues.
Important: The Series 9 Pro+ is available in multiple configurations (9587cc, 9597cc, 9675cc, etc.). The core shaver is identical, but bundled accessories vary. This manual covers all models and notes differences where applicable.
Product Overview
The Braun Series 9 Pro+ is a premium foil shaver made in Germany. It features a redesigned ProComfort head that can be attached before shaving to lift and release flat-lying hairs, preparing the skin for a closer shave with fewer strokes. The shaver’s 5+1 shaving elements include two OptiFoil precision foils, a ProLift titanium-coated blade, a SkinGuard stainless steel bar, a Direct&Cut blade for hairs growing in any direction, and an integrated precision ProTrimmer for longer hairs. The shaver is 100% waterproof for wet and dry use, delivering up to 60 minutes of cordless runtime from a full charge. The SmartCare Center uses an alcohol-based cleaning solution to hygienically clean, dry, charge, and lubricate the shaver automatically.

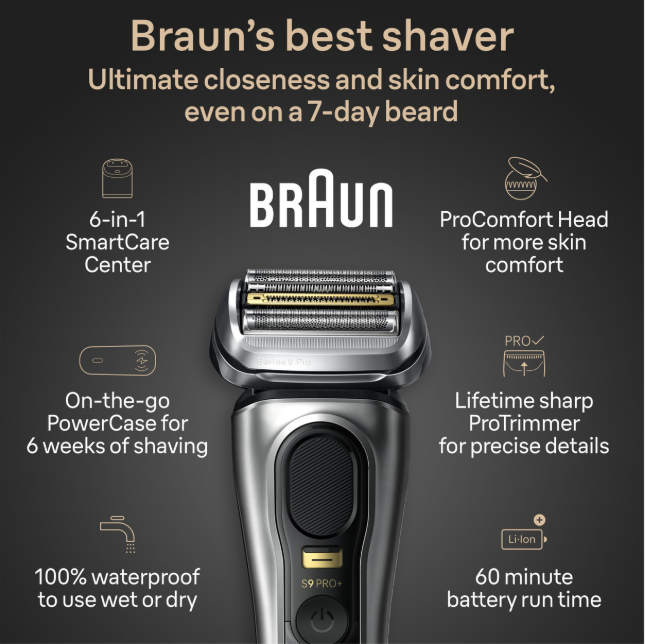

Full Specifications
| Specification | Detail |
|---|---|
| Model | 9587cc, 9586cc, 9577cc, 9597cc, 9599cc, 9675cc, 9690cce |
| Type | Foil electric shaver |
| Shaving Elements | 5+1 (2x OptiFoil, ProLift blade, SkinGuard, Direct&Cut blade, ProTrimmer) |
| Blade Density | 12% higher than previous Series 9 |
| Blade Stabilizer | 45% higher for exceptional cut efficiency |
| Beard Analysis | Pro SensoAdapt analyzes beard density 300x per second |
| Sonic Vibrations | 10,000 per minute |
| Cutting Actions | 40,000 per minute |
| Head Flexibility | 40° adaptive head for contour adaptation |
| Battery | Lithium-ion, up to 60 minutes cordless runtime |
| Charge Time | 1 hour for full charge |
| Quick Charge | 5-minute charge for one shave |
| Wet & Dry | 100% waterproof |
| Display | Performance Assistant Display (care indicator, Pro SensoAdapt indicator, shaver performance, charge status) |
| Cleaning | 6-in-1 SmartCare Center (cleans, dries, charges, lubricates, protects blades, auto-select program) |
| Travel Lock | Yes, 3-second hold to activate |
| In-the-Box | Shaver, 6-in-1 SmartCare Center, ProComfort head, cleaning cartridge, cleaning brush, travel case, charging cord |

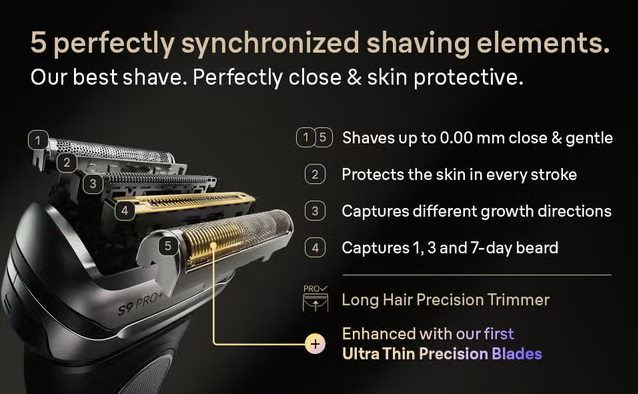

Key Features
- ProComfort Head: An attachment that lifts and releases flat-lying hairs before shaving, preparing the skin for a closer shave with fewer strokes. It works as a pre-shave routine when attached to the shaver head.
- AutoSense Technology: Automatically detects beard density and adjusts the shaver’s power in real time. It analyzes beard density 300 times per second for optimal results on any beard type.
- 5+1 Shaving Elements: Two OptiFoil precision foils with 899 unique holes each, a ProLift titanium-coated blade for lifting flat-lying hairs, a SkinGuard stainless steel bar for skin protection, a Direct&Cut blade for hairs growing in any direction, and an integrated precision ProTrimmer for longer hairs, moustache, and sideburns.
- ProTrimmer: Built-in precision trimmer enhanced with surgical-grade steel for maximum cutting efficiency on moustache, sideburns, and under-nose areas.
- 100% Waterproof (Wet & Dry): Use the shaver dry for convenience or with shaving foam or gel in the shower for a gentler shave.
- 6-in-1 SmartCare Center: Automatically cleans, dries, charges, lubricates, and protects blade lifetime using an alcohol-based cleaning solution. The Auto Select Program chooses the optimal cleaning cycle based on usage.
- Performance Assistant Display: Guides you for the best shaver maintenance with intuitive icons for care, Pro SensoAdapt, shaver performance, and charge status.
- PowerCase (select models): Delivers an additional 50% Li-Ion power for up to 90 minutes of shaving time without recharging, ideal for travel.
How to Use

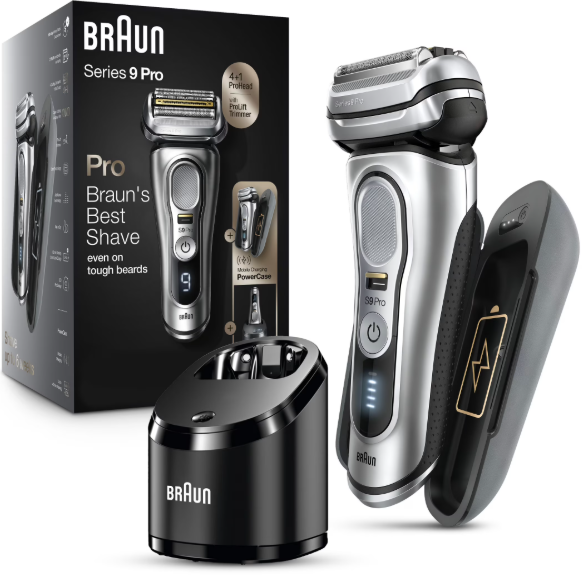

What’s in the Box
- Braun Series 9 Pro+ shaver
- ProComfort head attachment
- 6-in-1 SmartCare Center
- Cleaning cartridge (pre-installed or separate)
- Cleaning brush
- Travel case
- Charging cord
- User manual and warranty card

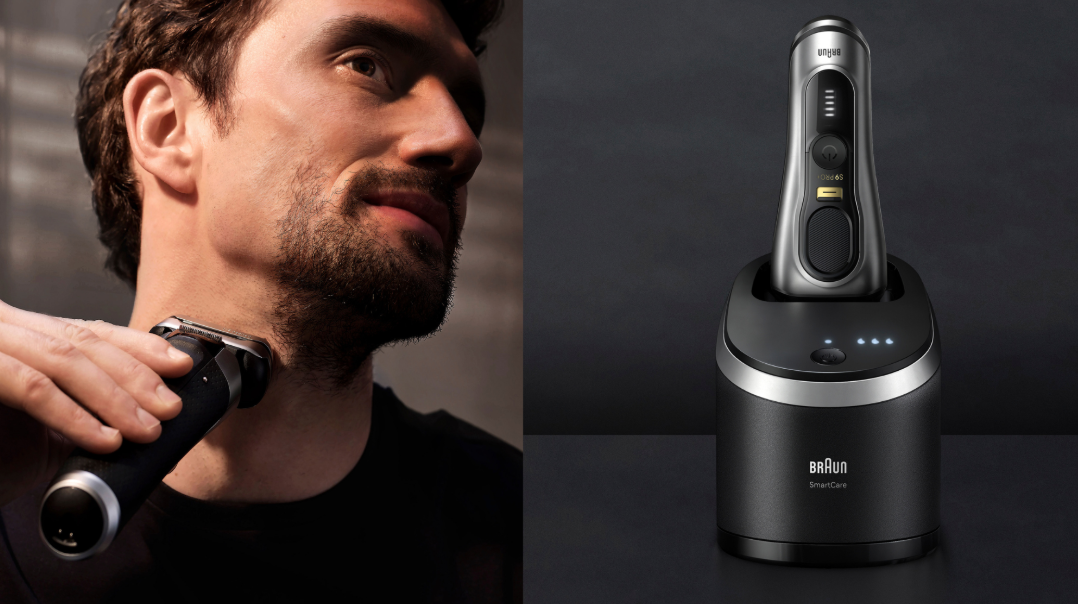

First-Time Setup
- Charge the shaver fully: Connect the charging cord to the shaver and a wall outlet. A full charge takes approximately 1 hour. You can also place the shaver in the SmartCare Center to charge.
- Insert the cleaning cartridge: Open the SmartCare Center and insert the cleaning cartridge if not already installed. The cartridge should be replaced every 8 weeks or after approximately 30 cleaning cycles, depending on usage.
- Attach the ProComfort head (for pre-shave preparation): Align the ProComfort head with the shaver head and push until it clicks into place. Use this attachment before your main shave to lift flat-lying hairs.
- Power on: Press the on/off button. The display will illuminate and show the battery status and performance indicators.
- Activate travel lock (for travel): Press and hold the on/off button for 3 seconds. The display will show a lock icon. Repeat to unlock.

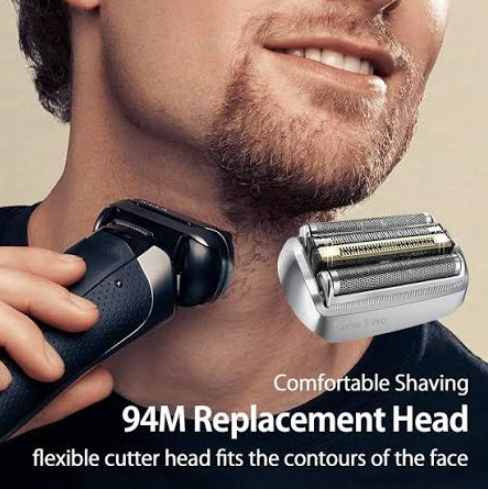

Shaving Instructions
- Step 1: Prepare with ProComfort Head (Optional)
Attach the ProComfort head and shave over the area you plan to shave. This lifts and releases flat-lying hairs, preparing the skin for a closer shave. - Step 2: Main Shave
Remove the ProComfort head. Turn on the shaver and move it gently over your skin in a circular motion. The 40° flexible head adapts to the contours of your face, chin, and neck. Let the shaver do the work—do not press hard. - Step 3: Precision Trimming
For moustache, sideburns, and under-nose areas, extend the integrated ProTrimmer by sliding the precision switch upward. Use it for detailed shaping and trimming longer hairs. - Step 4: Wet or Dry
The shaver is 100% waterproof. Use it dry for convenience or with shaving foam or gel for a gentler, more comfortable shave.

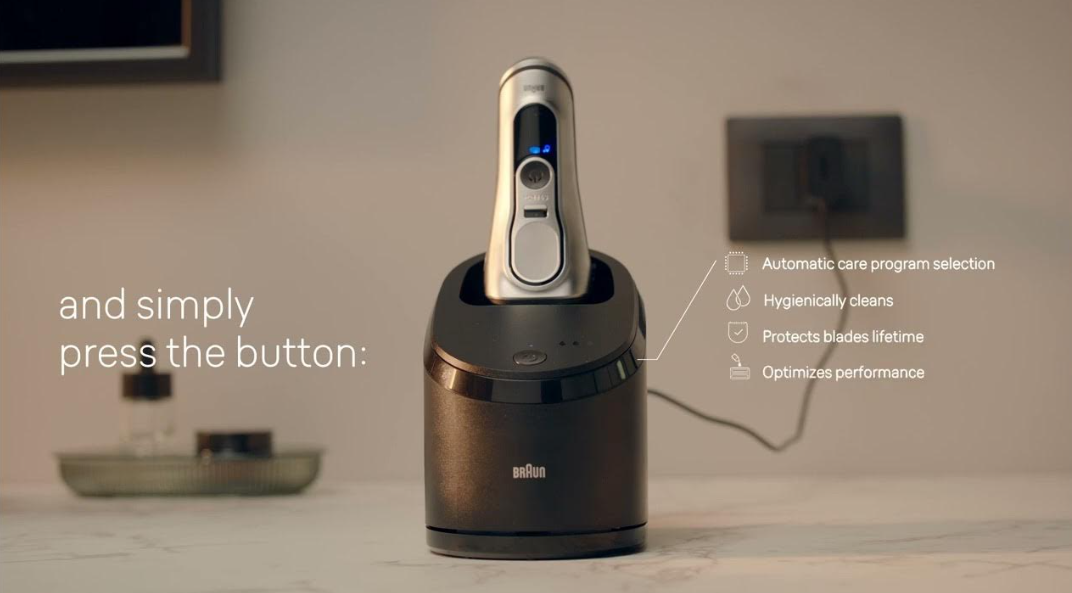

Using the SmartCare Center
- Place the shaver in the SmartCare Center: After shaving, place the shaver into the SmartCare Center. Ensure it is seated correctly with the contacts aligned.
- Press the start button: The SmartCare Center will automatically begin the cleaning cycle. The Auto Select Program chooses the optimal cleaning based on usage.
- Automatic process: The center cleans hygienically, dries actively, charges automatically, and lubricates the blades to protect blade lifetime.
- Cleaning indicator: The shaver’s display will show a cleaning indicator when it is time to clean. Place the shaver in the center when this lights up.
- Replace cartridge: Replace the cleaning cartridge every 8 weeks or after approximately 30 cycles. A fresh cartridge prevents unwanted odours.
Charging Methods
Method 1: Charging via the SmartCare Center (Recommended)
The SmartCare Center is the primary and recommended way to charge your Series 9 Pro+ because it also cleans, dries, and lubricates the shaver simultaneously.
Steps:
- Place the shaver in the SmartCare Center: After shaving, insert the shaver into the SmartCare Center with the head pointing downward. Ensure the charging contacts on the shaver align with the charging pins inside the center.
- Check alignment: The shaver should sit flush and stable. If it doesn’t seat properly, remove it and reinsert. A misaligned shaver will not charge or clean.
- Automatic charging begins: Once seated correctly, the SmartCare Center automatically starts charging. The shaver’s display will show the charging indicator.
- Cleaning and charging simultaneously: The SmartCare Center runs its cleaning cycle while charging. The Auto Select Program determines the optimal cleaning duration based on your usage.
- Full charge time: Approximately 1 hour for a complete charge.
- Remove when ready: Once the display shows a full charge, remove the shaver and it’s ready to use.
Note: The SmartCare Center requires a cleaning cartridge to operate. If the cartridge is empty or missing, the center will not clean but may still charge (depending on model). Replace the cartridge every 8 weeks or after approximately 30 cleaning cycles.
Method 2: Charging via the Charging Cord (Direct)
You can charge the shaver directly using the included charging cord without the SmartCare Center. This is useful for travel or when the SmartCare Center is not available.
Steps:
- Connect the charging cord: Plug the small end of the charging cord into the charging port on the bottom of the shaver.
- Plug into a wall outlet: Connect the other end to a standard wall outlet. Use a compatible voltage adapter if traveling internationally.
- Charging begins automatically: The shaver’s display will illuminate and show the charging status. The battery icon will animate to indicate charging is in progress.
- Full charge time: Approximately 1 hour for a complete charge.
- Disconnect when fully charged: Once the display shows a full battery, unplug the cord from the wall and the shaver.
Important: Do not turn on the shaver while it is connected to the charging cord. For safety reasons, the Series 9 Pro+ cannot be switched on while plugged into a power supply.
Method 3: Charging via the PowerCase (Select Models)
Some Braun Series 9 Pro+ models (9587cc, 9599cc) include a PowerCase that provides an additional 50% battery capacity for up to 90 minutes of total shaving time without needing a wall outlet.
Steps:
- Place the shaver in the PowerCase: Insert the shaver into the PowerCase with the head facing downward.
- PowerCase charges the shaver: The PowerCase will automatically begin charging the shaver’s internal battery.
- Check PowerCase battery level: The PowerCase has its own battery indicator. Charge the PowerCase itself using the charging cord or SmartCare Center when needed.
- Ideal for travel: The PowerCase is perfect for extended trips where you may not have access to a wall outlet.
Charging Indicators & Display
The Braun Series 9 Pro+ features a Performance Assistant Display that provides clear information about the charging status.
| Indicator | Meaning |
|---|---|
| Battery icon (animated) | Charging in progress |
| Battery icon (solid, full) | Fully charged (60 minutes runtime) |
| Battery icon (partial) | Remaining battery level |
| Battery icon (low, red) | Battery critically low (less than 10%) |
| Plug icon | Connected to power supply |
| Cleaning indicator | Shaver needs cleaning (place in SmartCare Center) |
| Travel lock icon | Travel lock is active |
| Pro SensoAdapt indicator | Beard density analysis is active |
Charging status colors:
- Green: Battery level is good (above 50%)
- Yellow: Battery level is moderate (20–50%)
- Red: Battery level is low (below 20%)
Charging Times & Battery Life
| Charging Scenario | Time / Runtime |
|---|---|
| Full charge (0–100%) | ~1 hour |
| Quick charge (5 minutes) | One full shave (approximately 5 minutes of use) |
| Cordless runtime (full charge) | Up to 60 minutes |
| PowerCase additional runtime | Up to 30 minutes (50% more) |
| Total runtime with PowerCase | Up to 90 minutes |
| Standby time | Several weeks (with travel lock engaged) |
Quick Charge Feature:
If the battery is completely drained, a 5-minute charge provides enough power for one complete shave. This is ideal for emergencies or when you’re in a hurry.
Battery Care & Longevity
The Braun Series 9 Pro+ uses a lithium-ion battery that is designed to last the lifetime of the shaver under normal use. However, proper charging habits can extend battery life.
Best Practices:
- Charge fully before first use: The shaver may arrive partially charged. Charge it fully before your first shave.
- Avoid deep discharges: Do not let the battery drain completely to 0% regularly. Charge when the battery indicator shows low (red).
- Charge at room temperature: Extreme heat or cold can damage the battery. Avoid charging in direct sunlight, in a hot car, or in freezing conditions.
- Do not leave on charger indefinitely: While the SmartCare Center is designed to maintain the battery, avoid leaving the shaver on the charger for weeks at a time without use. For long-term storage, charge to about 50% and store in a cool, dry place.
- Use original charging equipment: Third-party chargers may deliver incorrect voltage or current, potentially damaging the battery.
- Replace the battery if performance drops: If runtime drops significantly (e.g., less than 20 minutes on a full charge), the battery may need replacement. Contact Braun service for battery replacement.
Battery replacement:
The lithium-ion battery in the Series 9 Pro+ is not user-replaceable. If the battery fails or degrades significantly, contact Braun authorized service for professional replacement.
Charging Troubleshooting
| Problem | Likely Cause | What to Try |
|---|---|---|
| Shaver won’t charge | Faulty charging cord, dirty contacts, or battery issue | Try a different Braun charging cord. Clean the charging contacts on the shaver and SmartCare Center with a dry cloth. If still not charging, contact Braun support. |
| Charging is very slow | Wrong charger, or USB port not providing enough power | Use only the original Braun charging cord and a wall outlet. Avoid charging from a computer USB port, which may not provide enough power. |
| Battery drains quickly after full charge | Battery aging, or extreme temperature | Batteries degrade over time. Avoid charging in extreme heat or cold. If runtime is under 20 minutes, consider battery replacement. |
| Display shows plug icon but no charging | Shaver not seated correctly in SmartCare Center | Remove and reinsert the shaver. Ensure the charging contacts align with the pins. Clean any debris from the contacts. |
| Shaver beeps continuously while charging | Shaver not seated correctly, or contact issue | Re-seat the shaver. Clean the charging contacts. If beeping persists, the SmartCare Center may have a fault. |
| SmartCare Center won’t charge the shaver | Cleaning cartridge empty, or center not plugged in | Replace the cleaning cartridge. Ensure the SmartCare Center is plugged into a working outlet. Check that the shaver is correctly seated. |
| Battery indicator stays red after charging | Battery not fully charged, or display glitch | Allow more charging time. If the indicator stays red after 2 hours, unplug and restart. If issue persists, contact Braun support. |
| Shaver turns off immediately after unplugging | Battery completely drained, or battery failure | Charge fully (1 hour). If the shaver still turns off immediately, the battery may need replacement. |
Travel Lock & Charging
The Braun Series 9 Pro+ features a travel lock to prevent accidental activation during transport. When the travel lock is active, the shaver cannot be turned on.
To activate travel lock:
- Press and hold the on/off button for 3 seconds.
- The display will show a lock icon.
To deactivate travel lock:
- Press and hold the on/off button for 3 seconds again.
- The lock icon will disappear.
Important: The travel lock does not prevent charging. You can charge the shaver while the travel lock is active.
International Travel & Voltage
The Braun Series 9 Pro+ charging system is compatible with 100–240V, 50/60 Hz power outlets. This means you can use it in most countries without a voltage converter.
What you need:
- A plug adapter for the country you’re visiting (if the plug shape differs).
- The original Braun charging cord and SmartCare Center (if traveling with it).
What you don’t need:
-
A voltage converter (the charger handles 100–240V automatically).
PowerCase for travel:
The PowerCase provides additional battery capacity for extended trips, reducing the need to find a wall outlet. It is ideal for camping, long flights, or remote destinations.
Compatibility & Connectivity
| Feature | Details |
|---|---|
| Charging | SmartCare Center, charging cord |
| Wet & Dry | 100% waterproof |
| ProComfort Head | Compatible with all Series 9, 9 Pro, and 9 Pro+ shavers |
| Cleaning Cartridge | Braun-specific cartridges |
| Travel Case | Included with most models |
| PowerCase | Included with select models (9587cc, 9599cc) |
| Accessories | Replacement shaving heads (every 18 months), cleaning cartridges (every 2 months) |
Maintenance Schedule
| Frequency | Task |
|---|---|
| After every shave | Rinse the shaver head under warm running water with the shaver turned on to expel fluid |
| When care indicator appears | Place shaver in SmartCare Center for cleaning |
| Every 8 weeks | Replace cleaning cartridge or after 30 cycles |
| Every 18 months | Replace shaving head (foil & cutter cassette) |
| As needed | Clean with liquid soap for deep cleaning; rinse thoroughly |
Troubleshooting & Common Problems
| Problem | Likely Cause | What to Try |
|---|---|---|
| Shaver won’t turn on | Battery drained, or travel lock active | Charge fully. Check if travel lock is on (hold on/off for 3 seconds to unlock). |
| Shaver beeps continuously | Not seated correctly on charger or cleaning station | Ensure contacts align perfectly with charging pins. Clean any dirt or moisture from contacts. |
| Red light on display | Blockage in shaving head, or safety issue | Clean the shaving head thoroughly. Check that the foil and cutter block are connected correctly. |
| Shaver makes unusual noise | Foil/cutter not connected, or attachment not fitted correctly | Remove and refit the shaving head. Remove and refit any attachments. |
| Unwanted odours from shaver | Old cleaning cartridge, or trapped moisture | Replace cleaning cartridge if older than 8 weeks. Clean shaver with liquid soap and rinse thoroughly. Turn on to expel fluid. |
| Shaver not cleaning properly | Cleaning cartridge depleted, or shaver not seated | Replace cartridge. Ensure shaver is correctly positioned in the SmartCare Center. |
| Battery not lasting 60 minutes | Battery aging, or extreme temperatures | Batteries degrade over time. Avoid charging in extreme heat or cold. If runtime drops significantly, contact Braun service. |
| Shaver won’t charge | Wrong charger cable, or dirty contacts | Use only the original Braun charger cable. Clean charging contacts on both shaver and charger. |
Frequently Asked Questions
- What is the ProComfort head and how do I use it?
The ProComfort head is a pre-shave attachment that lifts and releases flat-lying hairs before shaving. Attach it to the shaver head and shave over the area before your main shave. It prepares the skin for a closer shave with fewer strokes. - How often should I replace the cleaning cartridge?
Replace the cleaning cartridge approximately every 8 weeks, or after about 30 cleaning cycles, depending on usage. A fresh cartridge prevents unwanted odours. - How often should I replace the shaving head?
Braun recommends replacing the shaving head (foil and cutter cassette) every 18 months for optimal performance. - Can I use the shaver with shaving foam?
Yes. The Series 9 Pro+ is 100% waterproof for wet and dry use. You can use it with shaving foam or gel in the shower. - Why can’t I turn on the shaver while it’s charging?
For safety reasons, Wet & Dry shavers cannot be switched on when the cable is connected to the power supply. Unplug the shaver to use it. - How do I activate travel lock?
Press and hold the on/off button for 3 seconds. The display will show a lock icon. Repeat to unlock. - What is AutoSense technology?
AutoSense analyzes your beard density 300 times per second and automatically adjusts the shaver’s power for optimal efficiency on any beard type. - Can I use a different charger cable?
Using a different charger cable can result in malfunction or longer charging times. Use only the original Braun charger cable. - How do I clean the shaver manually?
Use a small amount of liquid soap and rinse while running the shaver. Remove the foil and cutter block to let it aerate and dry thoroughly.
Tips
- Use the ProComfort head for best results: For the closest shave, use the ProComfort head as a pre-shave step to lift flat-lying hairs.
- Let the shaver do the work: Do not press hard. The flexible head and AutoSense technology adjust automatically.
- Rinse after every use: Hold the shaver head under warm running water with the shaver turned on to expel fluid and prevent residue buildup.
- Keep the SmartCare Center stocked: Replace the cleaning cartridge every 8 weeks for hygienic cleaning and fresh-smelling shaves.
- Charge in the SmartCare Center: It charges automatically while cleaning, so your shaver is always ready.
- Use the travel case: Protect your shaver during travel and prevent accidental activation with travel lock.
Safety Information
- Electrical Safety: Do not use the shaver near water while charging. Do not immerse the charging cord or SmartCare Center in water.
- Cleaning Cartridge: The cleaning cartridge contains alcohol-based solution. Keep away from flames and sources of ignition. Do not ingest. Keep out of reach of children.
- Skin Sensitivity: If you experience skin irritation, stop using the shaver and consult a dermatologist. Do not shave over irritated or broken skin.
- Battery: Do not puncture, crush, or expose the battery to high heat. If the battery swells, stop using the shaver and contact Braun service.
- Children: Keep the shaver, SmartCare Center, and cleaning cartridges out of reach of children.
- Wet & Dry Use: While the shaver is waterproof, do not use it while it is charging or plugged into the power supply.
PDF Resources
For the official PDF manual and additional documentation, visit:
- Braun Series 9 Pro+ User Manuals (PDF): Available at service.braun.com. Select your model for the correct manual.
- Braun Support & Troubleshooting: service.braun.com
- Braun Spare Parts & Accessories: braunshop.com
You can also save the official manual as a PDF by opening it in your browser and using File > Print > Save as PDF.
Browse all guides at productsmanuals.com .
Copyright 2026 productsmanuals.com All rights reserved. This Braun Series 9 Pro+ manual is original content and may not be copied, republished, or redistributed without written permission. Braun, Series 9 Pro+, ProComfort, AutoSense, Pro SensoAdapt, and the Braun logo are trademarks of Procter & Gamble. This guide is unofficial and not affiliated with Braun or P&G.
