Introduction

The GoPro HERO13 Black is one of the most capable and widely searched action cameras on the market. It is the go-to helmet camera for motorcyclists, cyclists, skiers, and adventurers who want to capture high-quality footage hands-free. It features a new 1/1.9-inch sensor, HyperSmooth 6.0 stabilization, 5.3K video at 60fps, and a redesigned magnetic mounting system. It also supports interchangeable HB-Series lenses for macro, ultra-wide, and anamorphic shooting. This manual covers everything from unboxing and helmet mounting to advanced settings and troubleshooting so you can get the most from your HERO13 Black.

Product Overview

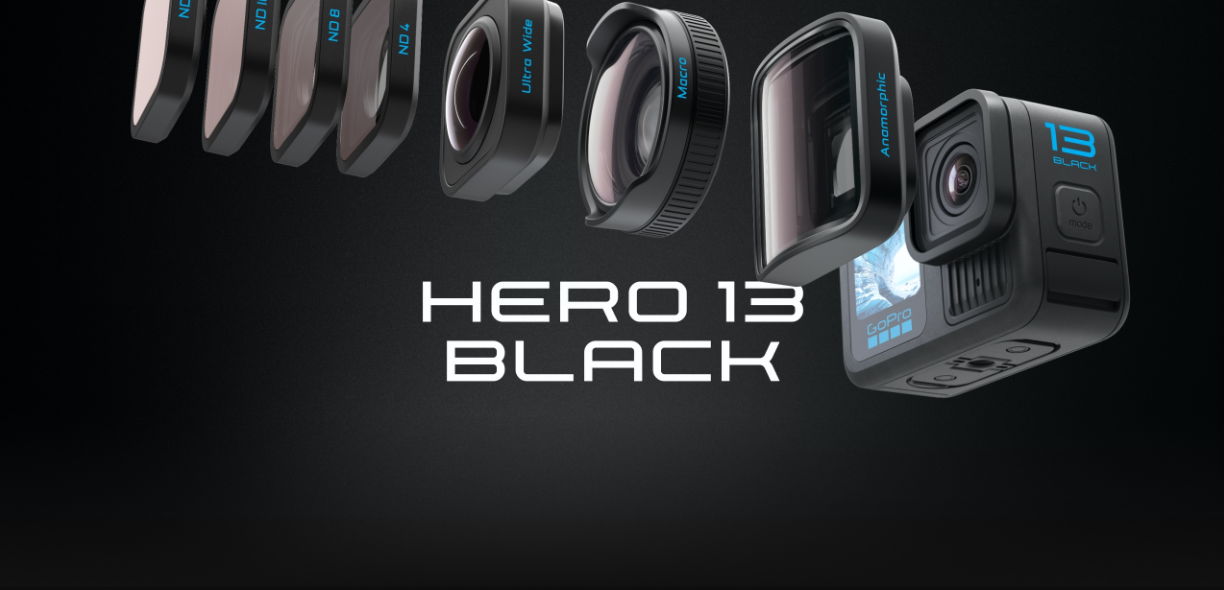

The GoPro HERO13 Black is a rugged, waterproof action camera designed for demanding environments. It has a 27MP sensor and shoots 5.3K video at up to 60fps, 4K at up to 120fps, and 2.7K at up to 240fps. It features HyperSmooth 6.0 stabilization with AutoBoost, a 177° field of view, and a new magnetic mounting system that makes it easier to swap between mounts. The camera is waterproof to 10 metres (33 feet) without a housing. It has a 1.4-inch front screen for framing and a 2.27-inch rear touchscreen. It uses a 1,720 mAh Enduro battery and supports microSD cards up to 1TB. The HERO13 Black is available in Black and Polar White.

Full Specifications

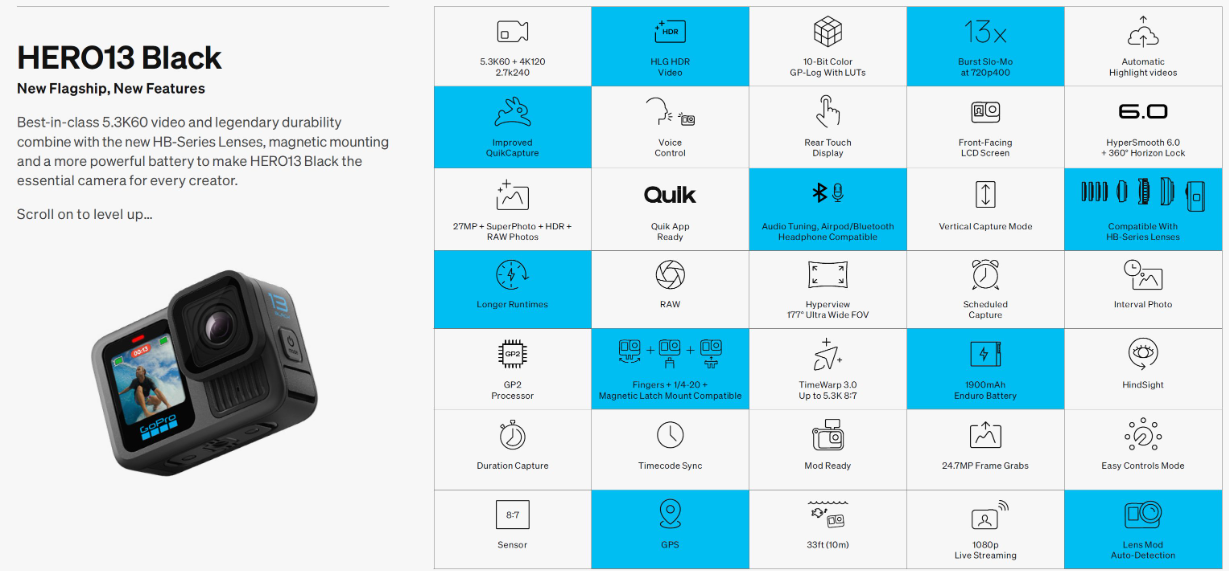

Key Features

• HyperSmooth 6.0 Stabilization: The most advanced stabilization GoPro has ever put in a camera. It uses a 1/1.9-inch sensor and AutoBoost to deliver gimbal-like smoothness, even on rough terrain.
• 5.3K Video at 60fps: Capture ultra-high-resolution footage with crisp detail. 4K at 120fps allows for stunning slow motion.
• Burst Slo-Mo: Shoot up to 13x slow motion at 720p400, 900p360, or 5.3K120 for 5–15 seconds.
• Interchangeable HB-Series Lenses: The camera automatically detects when a new lens is attached and adjusts settings accordingly. Available lenses include Macro, Ultra Wide, Anamorphic, and ND filters.

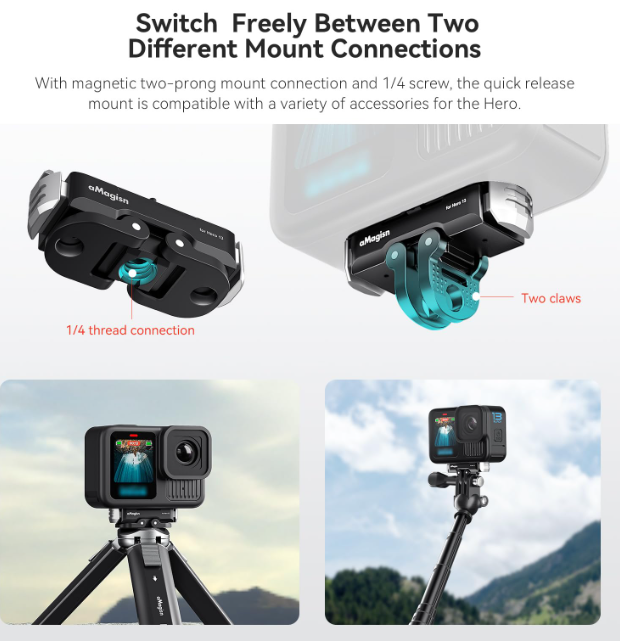

• Magnetic Mounting System: The new magnetic mount with a built-in 1/4-20 thread makes it faster and easier to swap between helmet, handlebar, and tripod mounts.
• Waterproof to 10m: No housing required for snorkelling, surfing, or riding in the rain.
• 1.4-inch Front Screen: Frame yourself for vlogging and selfies without guesswork.
• Enduro Battery: Improved cold-weather performance and longer runtime than previous GoPro batteries.
• 10-Bit Color + Log Encoding: Professional-grade colour depth for post-production flexibility.

How to Use

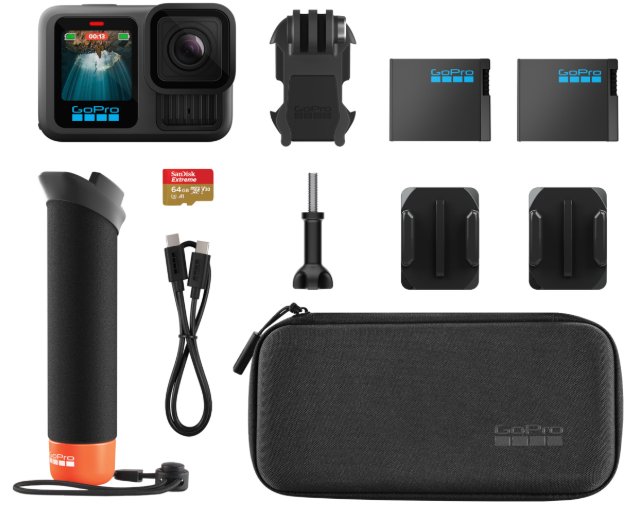

What’s in the Box

• GoPro HERO13 Black camera
• Enduro rechargeable battery
• Curved adhesive mount
• Mounting buckle
• USB-C cable
• Carrying case
• Quick Start Guide

First-Time Setup

1. Charge the battery: Connect the USB-C cable to the camera and a 5V/2A power source. The camera can charge via USB-C. A full charge takes about 2 hours.
2. Insert the microSD card: Open the battery door on the bottom of the camera. Insert a V30 or faster microSD card (up to 1TB) into the slot. Push until it clicks.
3. Insert the battery: Align the battery contacts and slide it into the compartment. Close the door firmly.
4. Power on: Press and hold the Mode/Power button on the side until the camera turns on.
5. Follow the on-screen setup: Use the rear touchscreen to select your language, set the date/time, and connect to Wi-Fi.
6. Pair with the GoPro Quik app: Download the GoPro Quik app on your phone and follow the prompts to pair the camera via Bluetooth and Wi-Fi. This enables remote control and automatic video highlights.

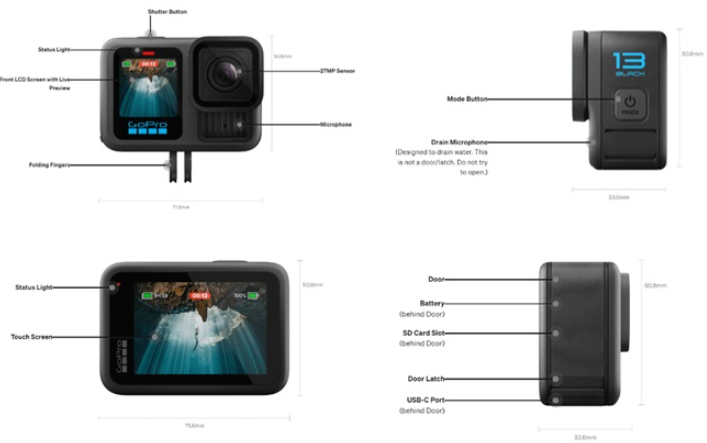

Physical Controls

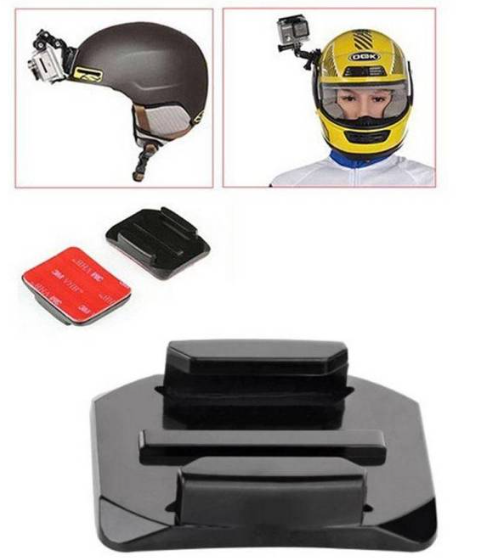

Helmet Mounting

1. Clean the helmet surface: Use an alcohol wipe to clean the area where you want to mount the camera. Let it dry completely.
2. Apply the adhesive mount: Peel the backing off the curved adhesive mount and press it firmly onto the helmet. Hold for 30 seconds.
3. Wait before use: Allow the adhesive to cure for at least 24 hours before attaching the camera. Heat the adhesive slightly with a hairdryer before applying for a stronger bond.
4. Attach the mounting buckle: Slide the mounting buckle into the adhesive mount until it clicks.
5. Attach the camera: Align the magnetic mount on the camera with the buckle. The magnets will pull the camera into place. Ensure it is secure before riding.

Alternative mounting options:

• Chest mount: Use the chesty mount for a first-person view of the handlebars.
• Handlebar mount: Use a handlebar mount for a stable, forward-facing view.

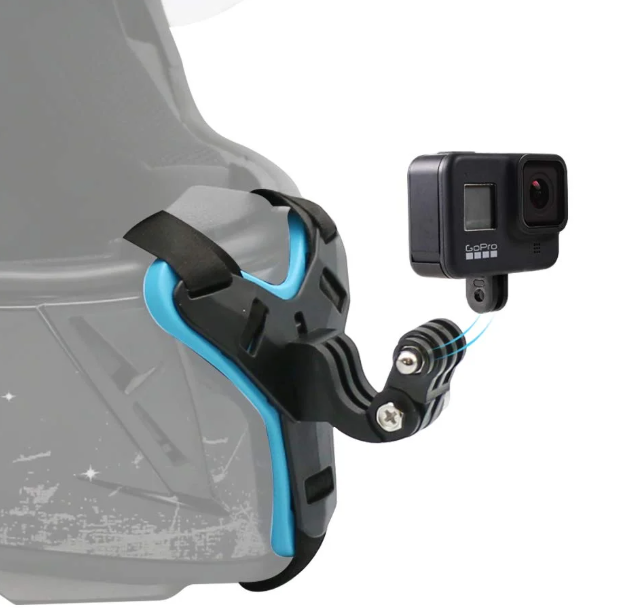

• Chin mount: Use a chin mount for a helmet-integrated, low-profile view.

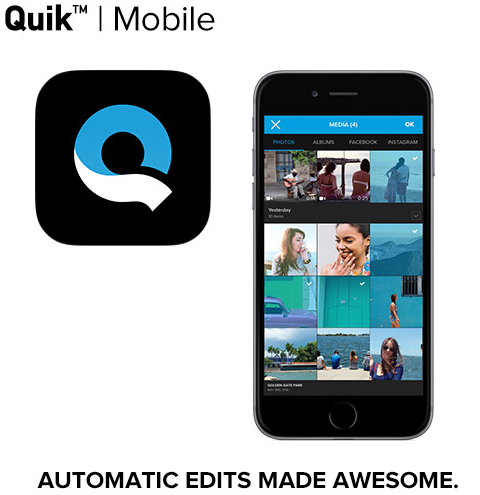

Using the GoPro Quik App

1. Download the GoPro Quik app from the App Store or Google Play Store.
2. Open the app and tap “Add Camera” .
3. Follow the prompts to pair your HERO13 Black via Bluetooth.
4. Once paired, you can:

• Preview the live view
• Start/stop recording
• Change settings
• Transfer footage to your phone
• Create automatic edits with music and effects

Compatibility & Connectivity

Remote Control & App Section

The GoPro Quik app acts as a full remote control for the HERO13 Black.

Voice Control Commands:

• “GoPro, start recording”
• “GoPro, stop recording”
• “GoPro, take a photo”
• “GoPro, turn off”
• “GoPro, highlight”
• “GoPro, mode video”
• “GoPro, mode photo”
• “GoPro, time lapse”

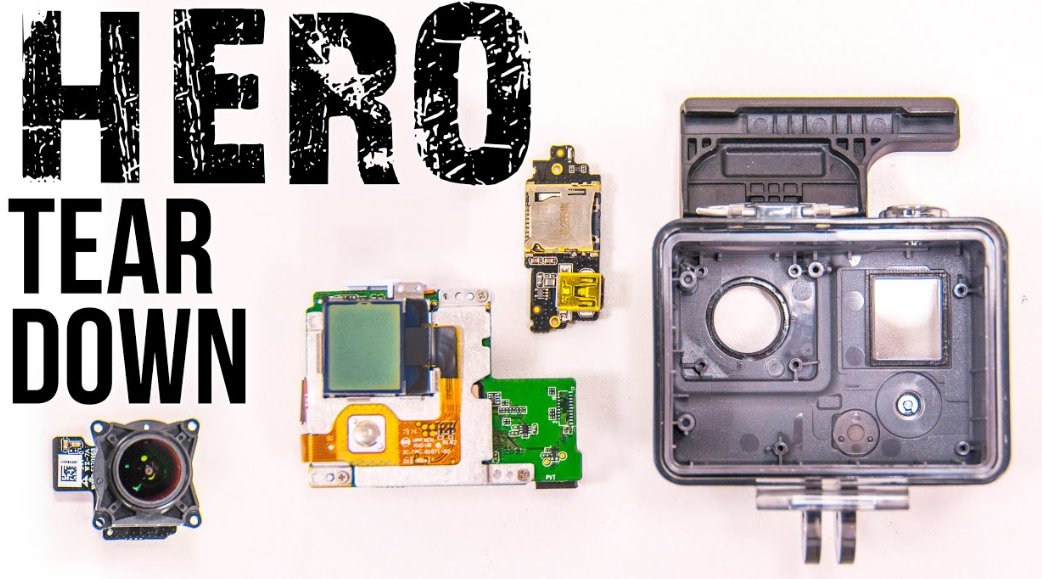

Internal Structure / Teardown

The HERO13 Black is a sealed, waterproof unit. It is not designed to be user-disassembled. The internal components include:

• 1/1.9-inch CMOS sensor
• GP2 processor
• 1,720 mAh Enduro battery (user-replaceable)
• microSD card slot (user-accessible)
• USB-C port (user-accessible)
• Wi-Fi 6 and Bluetooth 5.0 modules
• Magnetic mounting system

Do not attempt to open the camera beyond the battery door. Doing so will void the warranty and compromise the waterproof seal.

Maintenance Schedule

Firmware & Software Updates

1. Via the GoPro Quik app: Open the app, connect to the camera, and go to Settings > Firmware Update . Follow the prompts.
2. Manual update: Visit gopro.com/update, select HERO13 Black, and follow the instructions to download the firmware to a microSD card. Insert the card into the camera and power it on. The camera will detect the update and install it.
3. Always keep firmware updated: Updates improve stability, add new features, and fix bugs.

Warranty & Support Information

• Warranty period: 1 year from date of purchase (region-dependent)
• Covered: Manufacturing defects
• Not covered: Physical damage, water damage (beyond rated depth), normal wear and tear
• How to claim: Contact GoPro Support with proof of purchase and the camera serial number
• Support: gopro.com/support

Accessories & Optional Add-ons

Comparison with Other Models

Pros & Cons

Pros:

• Best-in-class stabilization
• Interchangeable lens system
• 5.3K60 video
• Waterproof without housing
• Magnetic mounting is fast and secure
• Excellent app and auto-editing

Cons:

• Expensive compared to competitors
• Battery life is average
• Large and heavy compared to Insta360 GO 3S
• Overheating in high-resolution modes during extended use

What’s New vs Previous Generation

Common Mistakes to Avoid

• Not waiting 24 hours for adhesive to cure: The mount can fall off mid-ride.
• Using a slow microSD card: Causes recording errors and dropped frames. Use V30 or faster.
• Recording in 5.3K60 in direct sunlight for extended periods: Can cause overheating. Use 4K60 for longer sessions.
• Forgetting to close the battery door fully: Compromises waterproofing.
• Not updating firmware: Misses out on new features and stability fixes.
• Using a dirty lens: Causes blurry footage. Clean regularly with a microfibre cloth.

Quick Reference Card

Glossary of Terms

• HyperSmooth: GoPro’s stabilization technology.
• AutoBoost: Automatically adjusts stabilization based on speed and vibration.
• Horizon Lock: Keeps the horizon level even when the camera tilts.
• HB-Series: Interchangeable lens system for HERO13 Black.
• Enduro Battery: Improved battery for cold weather and longer runtime.
• Burst Slo-Mo: High-frame-rate slow motion for short bursts.
• 10-Bit Color: Enhanced color depth for professional editing.
• Log Encoding: Flat colour profile for maximum post-production flexibility.

Video Tutorials & Resources

• GoPro Official YouTube: Search “HERO13 Black tutorial” for setup, mounting, and settings guides.
• GoPro Quik App: In-app tutorials and tips.
• GoPro Support: gopro.com/support
• Community: GoPro Community forums for user tips and troubleshooting.

Where to Buy & Price Information

User Scenarios / Use Cases

• Motorcyclist: Mount on helmet for POV riding footage. Use HyperSmooth 6.0 to smooth out road vibration.
• Cyclist: Use chest mount or handlebar mount for stable footage on rough roads.
• Skier/Snowboarder: Mount on helmet for first-person powder shots. Use Enduro battery for cold weather.
• Vlogger: Use front screen for self-framing. Pair with Media Mod for external microphone.
• Diver/Snorkeler: Waterproof to 10m. Use with a floating hand grip for water sports.

Storage & Transport

• Store in the included carrying case when not in use.
• Remove the battery if storing for more than a month.
• Store in a cool, dry place away from direct sunlight.
• Do not store with a drained battery for extended periods.
• For travel: The camera fits easily in a pocket or small bag.

Cleaning & Care Guide

• Lens: Wipe with a microfibre cloth. Do not use paper towels or abrasive materials.
• Body: Rinse with fresh water after salt water exposure. Dry with a soft cloth.
• Battery door seal: Inspect for debris. Clean gently with a soft brush.
• USB-C port: Clean with a wooden toothpick. Do not use metal objects.
• Adhesive mount: Inspect for wear. Replace if the adhesive is no longer tacky.

Performance Benchmarks

System Requirements

• App: GoPro Quik (iOS 15+, Android 11+)
• Computer: Windows 10+, macOS 11+
• MicroSD: V30 or faster, up to 1TB
• Charging: USB-C, 5V/2A recommended
• Wi-Fi: 2.4 GHz or 5 GHz

Regulatory Information

• FCC ID: [Model-specific, on the bottom of the camera]
• CE Mark: Compliant with EU regulations
• RoHS: Compliant with hazardous substance restrictions
• WEEE: Dispose of properly at electronics recycling centres
• Battery: Lithium-ion — follow local disposal regulations

Disposal & Recycling

• Do not dispose of the camera or battery in household trash.
• Recycle: Take to an electronics recycling centre.
• Battery: Discharge fully before disposal. Tape contacts to prevent short circuits.
• GoPro Recycling: Visit gopro.com/recycling for details.

Step-by-Step Photo Guide

[Image Placeholder 3: Step-by-step guide showing: (1) clean helmet surface, (2) apply adhesive mount, (3) wait 24 hours, (4) attach mounting buckle, (5) attach camera magnetically, (6) secure and test. Alt text: “GoPro HERO13 Black helmet mounting step-by-step”]

Error Code Table

Reset & Recovery Procedures

• Soft Reset: Press and hold the Mode/Power button for 10 seconds until the camera restarts.
• Factory Reset: Go to Settings > Reset > Factory Reset . This erases all settings and returns the camera to default.
• Hard Reset (if frozen): Remove the battery, wait 10 seconds, reinsert, and power on.
• Firmware Recovery: If the camera won’t boot, download the latest firmware to a microSD card, insert it, and power on. The camera will detect and install the update.

Battery Care Deep Dive

• Use the Enduro battery for best cold-weather performance.
• Avoid fully draining the battery regularly. Charge when it drops to 20–30%.
• Store at 50% charge if not using for extended periods.
• Do not leave in a hot car or direct sunlight. Heat degrades battery life.
• Replace the battery if runtime drops significantly or if it swells.
• Fast charging: USB-C fast charging is supported. A 30-minute charge provides about 50% battery.

Seasonal / Periodic Maintenance

First-Time Setup Checklist

• Unbox camera and accessories
• Charge battery fully
• Insert microSD card (V30 or faster)
• Insert Battery
• Power on
• Select language and set date/time
• Connect to Wi-Fi
• Pair with GoPro Quik app
• Update firmware
• Set preferred video resolution
• Test recording
• Mount on helmet (wait 24 hours for adhesive)
• Test voice commands

Hidden Features

• Scheduled Capture: Set the camera to start recording at a specific time.
• HindSight: Records up to 30 seconds before you press the shutter.
• LiveBurst: Captures 1.5 seconds before and after a photo.
• TimeWarp 3.0: Stabilized time-lapse with speed ramping.
• Slo-Mo with AutoBoost: Automatically adjusts stabilization for slow motion.
• Voice Control in Multiple Languages: Supports English, French, German, Spanish, Italian, and more.
• QuickCapture: Press the shutter button when the camera is off to instantly start recording.

Advanced Tips

• Use 10-Bit Color + Log for maximum editing flexibility. Colour grade in post.
• Use ND filters in bright sunlight to maintain a 180-degree shutter angle.
• Use the front screen for vlogging and selfies.
• Use Burst Slo-Mo for short, dramatic slow-motion clips.
• Use Scheduled Capture for sunrise/sunset time-lapses.
• Pair with Media Mod for external microphone input.
• Use the Quik app’s Lens Tool to change the digital lens after capture.

Troubleshooting Flowchart

Camera won't turn on?
├── Charge battery → works? Done
├── Try different USB-C cable → works? Done
└── Remove battery, wait 10s, reinsert → works? Done

Camera won't record?
├── Check SD card (V30?) → works? Done
├── Format SD card → works? Done
└── Factory reset → works? Done

Overheating?
├── Reduce resolution → works? Done
├── Remove from direct sunlight → works? Done
└── Turn off and cool → works? Done

Wi-Fi not connecting?
├── Restart camera → works? Done
├── Restart router → works? Done
└── Re-pair with app → works? Done

Compatibility Matrix

Case Quick Reference Card

Warranty & Support

• Warranty: 1 year limited warranty
• Covered: Manufacturing defects
• Not covered: Physical damage, water damage beyond rated depth, normal wear
• Support: gopro.com/support
• Replacement: Available through GoPro or authorized retailers

Where to Buy

• GoPro.com: Official store
• Amazon: Third-party sellers
• Best Buy: Retail stores
• B&H Photo: Online retailer
• Price range: $349–$499 depending on bundle

User Scenarios

• Motorcyclist: Helmet mount for POV riding footage.
• Cyclist: Chest or handlebar mount for stable footage.
• Skier: Helmet mount for powder shots.
• Vlogger: Front screen for self-framing, Media Mod for audio.
• Diver: Waterproof to 10m, floating hand grip.

Quick Reference Card

PDF Resources

For the official PDF manual and additional documentation, visit:

• GoPro HERO13 Black User Manual (PDF): Available at gopro.com/update.
• GoPro Quik App Setup Guide: Available at gopro.com.
• Safety and Warranty Guide: Included in the box and available online.

You can also save the official manual as a PDF by opening it in your browser and using File > Print > Save as PDF.

Related Manuals

If this guide was helpful, here are a few more popular manuals from productsmanuals.com that you might find useful:

• DJI Osmo Action 4 Manual – Setup, RockSteady 3.0 & Troubleshooting
  Explore DJI’s action camera with 4K120 video and 18m waterproofing.
  View the DJI Osmo Action 4 Manual
• Insta360 GO 3S Manual – Setup, Magnetic Mounting & App Guide
  Discover the ultra-compact helmet camera with FlowState stabilization.
• Samsung Galaxy Buds FE Manual – Setup, Features & Troubleshooting
  Master your Galaxy Buds FE with ANC, touch controls, and battery tips.
• Google Nest Doorbell (Battery) GA01318 Manual – Setup, Features & Troubleshooting
  Secure your front door with this wire-free smart doorbell.
• Ring Battery Video Doorbell (2nd Gen) Manual – Setup, Motion Zones & Troubleshooting
  Explore Ring’s best-selling wire-free doorbell with 1440p HD video.

Browse all guides at productsmanuals.com .

Copyright 2026 productsmanuals.com All rights reserved. This GoPro HERO13 Black manual is original content and may not be copied, republished, or redistributed without written permission. GoPro, HERO, HyperSmooth, and the GoPro logo are trademarks of GoPro, Inc. This guide is unofficial and not affiliated with GoPro.
