Introduction

The Bosch 800 Series induction cooktop (model NIT8069UC) is the highest-rated induction cooktop by Consumer Reports in 2026, earning a perfect score for performance and owner satisfaction. It features Bosch’s FlexInduction technology, which combines two cooking zones into one large flexible surface, and a built-in downdraft ventilation system that eliminates the need for a separate range hood. The cooktop uses magnetic induction to heat pots and pans directly, delivering faster heat-up times, precise temperature control, and superior energy efficiency compared to gas or traditional electric cooktops. This manual covers everything from installation and first-time setup to using the FlexInduction zones, AutoOn ventilation, and troubleshooting common issues.

Product Overview

The Bosch 800 Series NIT8069UC is a 30-inch induction cooktop with a sleek black glass surface and a built-in downdraft ventilation system. It features four cooking zones that can be combined into larger FlexInduction surfaces, a bridge zone for griddle cooking, and precise power controls with 17 power levels. The downdraft system pulls smoke, steam, and odours downward through a telescopic vent, making it ideal for kitchens with limited overhead space. The cooktop includes Bosch’s AutoOn function, which automatically activates the ventilation when the cooktop heats up, and a PowerBoost function that delivers rapid heat for boiling water. The touch controls are intuitive and easy to clean, and the glass surface wipes clean effortlessly.

The cooktop is designed for households that want the precision of induction cooking without the visual clutter of a traditional range hood. It is available in 30-inch and 36-inch sizes.

Full Specifications

Key Features

• FlexInduction Technology: Combines two cooking zones into one large flexible cooking surface. You can place multiple pots and pans anywhere within the FlexInduction area, and the cooktop automatically detects their size and position. This is ideal for large skillets, griddles, and roasting pans.
• Integrated Downdraft Ventilation: The telescopic downdraft vent rises from the cooktop surface when needed and retracts when not in use. It captures smoke, steam, and odours from the cooking surface before they rise into the kitchen, eliminating the need for an overhead range hood.
• PowerBoost Function: Delivers a rapid burst of heat to boil water faster than any other cooking method. PowerBoost can be activated on any cooking zone and is ideal for pasta water, blanching vegetables, and quick stir-fries.
• 17 Power Levels: Provides precise control from the gentlest simmer to the most intense sear. The touch controls make it easy to adjust heat with exactness.
• AutoOn Ventilation: Automatically activates the downdraft fan when the cooktop detects heat. The fan speed adjusts based on the cooking intensity, so you don’t have to remember to turn it on or adjust it manually.
• AutoOff Ventilation: The fan continues to run for a short period after cooking ends to clear residual smoke and odours, then shuts off automatically.
• Child Lock: Prevents accidental activation of the cooktop, ideal for households with young children.
• Residual Heat Indicator: Displays which cooking zones are still hot after use, preventing accidental burns.
• Safety Shut-Off: Automatically turns off a cooking zone if it detects that no cookware is present or if the cookware is not suitable for induction.

How to Use

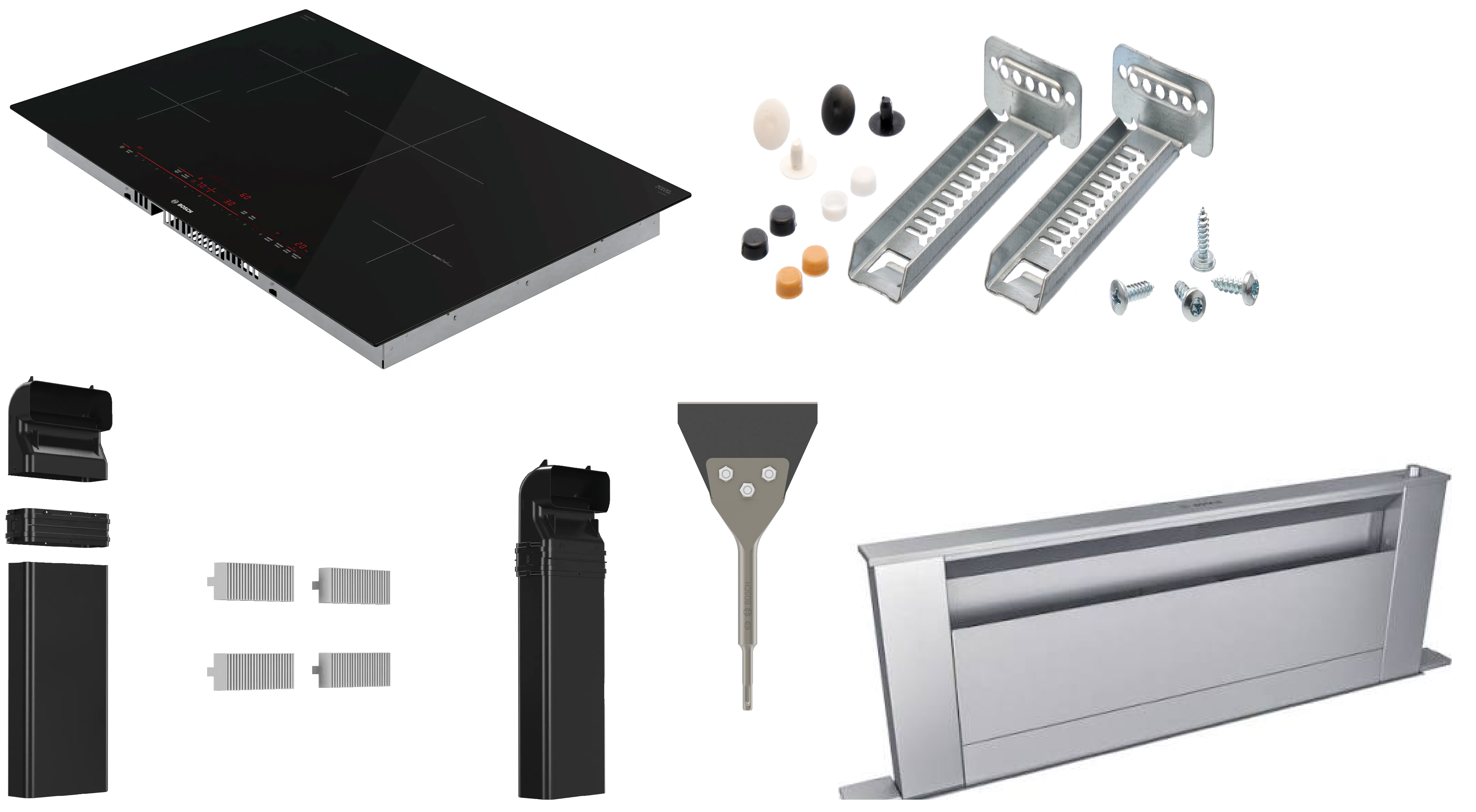

What’s in the Box

• Bosch 800 Series induction cooktop (NIT8069UC)
• Telescopic downdraft ventilation unit
• Mounting brackets and screws
• Venting duct connection kit
• Cleaning scraper
• Installation guide and user manual
• Warranty card

First-Time Setup

1. Installation: The cooktop must be installed by a qualified technician. The cutout dimensions are 28.75″ W x 19.8″ D. The cooktop requires a 208–240 V, 40 A electrical connection. The downdraft ventilation requires a 6-inch round duct connected to an exterior vent.
2. Connect the Ventilation Duct: Route the 6-inch duct from the downdraft unit to an exterior wall or roof vent. Ensure all connections are sealed with foil tape to prevent air leaks.
3. Electrical Connection: Connect the cooktop to the electrical supply according to local codes. The cooktop requires a dedicated 40 A circuit.
4. Position the Cooktop: Lower the cooktop into the cutout, ensuring the downdraft vent is aligned with the duct connection. Secure with the mounting brackets.
5. Power On: Turn on the circuit breaker. The cooktop will run a self-test and the touch controls will illuminate.

Physical Controls

Using the FlexInduction Zones

The FlexInduction zones are the standout feature of the Bosch 800 Series. Here’s how to use them:

1. Single Zone Mode: Use each cooking zone independently as you would any induction cooktop.
2. FlexInduction Mode: Press the FlexInduction button to combine two adjacent zones into one large surface. The cooktop automatically detects the size and position of the cookware.
3. Place Cookware: Place pots or pans anywhere within the FlexInduction area. The cooktop will detect the cookware and activate the appropriate heating elements.
4. Bridge Zone (Optional): For griddles or large roasting pans, use the bridge zone to connect two FlexInduction zones into an even larger cooking surface.

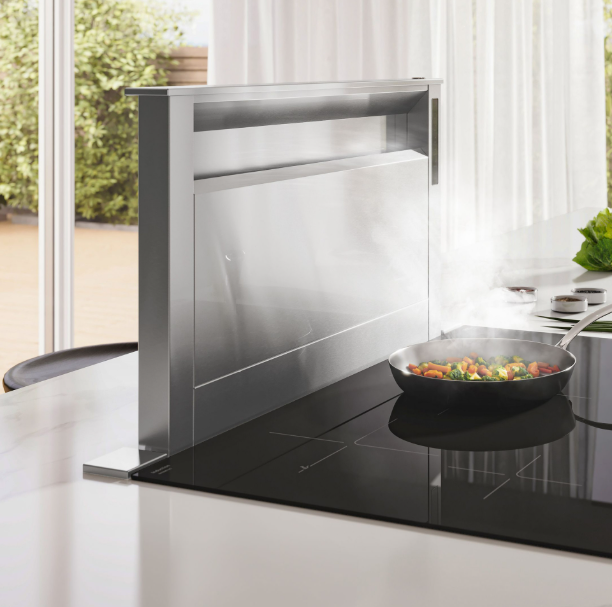

Using the Downdraft Ventilation

1. Manual Activation: Press the Ventilation Control button to turn on the fan. Adjust the fan speed (1–4) using the up and down arrows.
2. AutoOn Mode: Press the AutoOn button. The fan will automatically activate when the cooktop detects heat and adjust speed based on cooking intensity.
3. AutoOff: The fan continues running for a few minutes after cooking ends, then shuts off automatically.
4. Telescopic Vent: The vent rises automatically when the fan is activated and retracts when the fan is turned off. Do not force the vent up or down manually.

PowerBoost and Power Levels

• PowerBoost: Press the PowerBoost button on the selected zone. The zone will operate at maximum power for a limited time (usually 10 minutes) to boil water or sear meat quickly. The cooktop will automatically reduce power after the boost period.
• Adjusting Power Levels: Use the slider to select a power level from 1 to 17. Level 1 is the gentlest simmer; Level 17 is the highest continuous power.

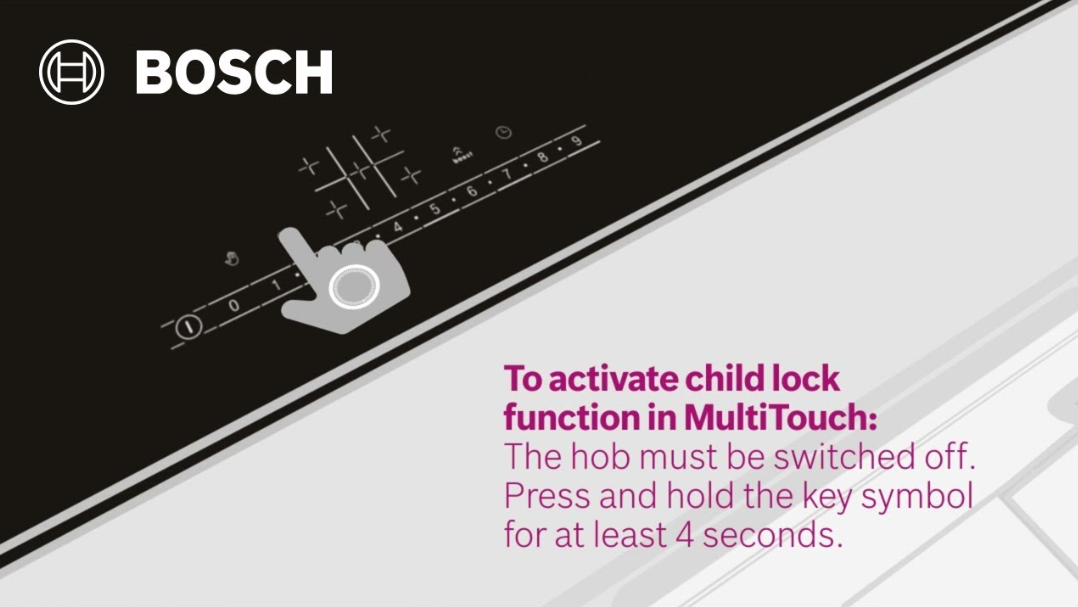

Child Lock and Safety Features

• Child Lock: Press and hold the Child Lock button for 3 seconds to lock the controls. Press and hold again to unlock.
• Residual Heat Indicator: After turning off a zone, an “H” will appear on the display if the surface is still hot. Wait for the “H” to disappear before touching the surface.
• Safety Shut-Off: If the cooktop does not detect cookware on a zone for a period of time, it will automatically shut off that zone.

Compatibility & Connectivity

Maintenance Schedule

Troubleshooting & Common Problems

Frequently Asked Questions

• What type of cookware works with the Bosch 800 Series induction cooktop?
  You need ferromagnetic cookware — cast iron, enameled steel, or induction-ready stainless steel. Test with a magnet: if it sticks to the bottom of the pan, it will work. Aluminium, copper, and glass cookware will not work.
• Does the downdraft ventilation require exterior venting?
  Yes. The 6-inch duct must be routed to an exterior wall or roof. Recirculating kits are available for some models but are not standard.
• How loud is the downdraft fan?
  The fan operates at up to 4 speed levels. At the highest speed, it produces noise similar to a standard range hood. AutoOn adjusts speed based on cooking intensity, so it’s usually quieter than running at maximum.
• Can I use the cooktop without the downdraft?
  Yes, the cooktop can operate without the ventilation system, but you will not have smoke and odour removal. The downdraft is a separate function.
• How do I clean the glass surface?
  Use a ceramic glass cleaner and a soft cloth or scraper. Avoid abrasive cleaners, steel wool, or harsh chemicals.
• What is the difference between FlexInduction and a standard induction zone?
  FlexInduction combines two zones into one large surface that detects cookware anywhere on the surface. A standard zone only heats within its fixed circle.
• Does the cooktop have a timer?
  Yes, each zone has a timer function. Set the timer to turn off the zone automatically.
• Can I install the cooktop myself?
  Installation should be performed by a qualified technician due to the electrical and ducting requirements. Improper installation can void the warranty.
• How often should I clean the downdraft filter?
  Clean the filter monthly, or more often if you cook frequently. A clogged filter reduces ventilation performance.
• Does the cooktop work during a power outage?
  No. Induction cooktops require electricity to operate. During a power outage, the cooktop will not function.
• What is the warranty on the Bosch 800 Series induction cooktop?
  It comes with a 1-year limited warranty and a 5-year parts warranty on the heating elements.

Tips

• Test cookware with a magnet: Before buying new pots or pans, test them with a refrigerator magnet. If the magnet sticks to the bottom, the cookware is induction-compatible.
• Use flat-bottomed cookware: Cookware with a flat, heavy base provides the best contact with the induction surface and the most even heating.
• Preheat on lower power: For delicate foods, preheat on a lower power level and increase gradually. Induction heats quickly, so it’s easy to overshoot.
• Clean up spills immediately: The glass surface is easiest to clean when spills are still fresh. Use a scraper for dried-on residue.
• Use the AutoOn ventilation: Let the cooktop manage the fan speed automatically. It’s more efficient and quieter than running the fan at maximum.
• Keep the vent filter clean: A clean filter ensures maximum ventilation performance and reduces noise.
• Use the timer: Set the timer for foods that need precise cooking times, such as pasta or rice.
• Avoid sliding cookware: Lift pots and pans when moving them. Sliding can scratch the glass surface.
• Safety Information
• Electrical Safety: The cooktop requires a dedicated 40 A circuit. Installation must be performed by a qualified technician in accordance with local codes.
• Burn Hazard: The glass surface and the cooking zones retain heat after use. Wait for the residual heat indicator to turn off before touching the surface.
• Cookware Safety: Never leave empty cookware on an active induction zone. The cooktop will heat the pan rapidly and can cause damage or fire.
• Child Safety: Use the Child Lock feature to prevent children from turning on the cooktop. Keep children away from the cooktop during and after use.
• Ventilation Safety: Do not block the downdraft vent or the ductwork. Ensure the vent is fully extended during use.
• Cleaning Safety: Turn off the cooktop and allow it to cool before cleaning. Do not use abrasive cleaners or sharp objects on the glass surface.
• Fire Safety: Never use water on a grease fire. Use a fire extinguisher or smother the flames with a lid.
• Magnet Warning: The induction cooktop generates a magnetic field. Keep credit cards, watches, and medical devices (pacemakers, insulin pumps) away from the cooking surface.

PDF Resources

For the official PDF manual and additional documentation, visit:

• Bosch 800 Series Induction Cooktop User Manual (PDF): Available at bosch-home.com/us/service/get-support.
• Bosch Installation Guide (PDF): Available at the same support page.
• Bosch Ventilation Ducting Guide (PDF): Available at bosch-home.com.

You can also save the official manual as a PDF by opening it in your browser and using File > Print > Save as PDF.
