electriQ ECOSILENT8W PORTABLE AIR CONDITIONER User Manual

electriQ ECOSILENT8W PORTABLE AIR CONDITIONER

INTRODUCTION

Thank you for choosing electriQ

Please read this user manual before using this innovative Air Conditioner and keep it safe for future reference.
Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals.

Model	Connectivity	Cooling Capacity (BTU)	Variant Code
electriQ Portable Air Conditioner ECOSILENT8W	Wi-Fi	8,000 BTU	ECOSILENT8WE
electriQ Portable Air Conditioner ECOSILENT10W	Wi-Fi	10,000 BTU	ECOSILENT10WE

SAFETY INSTRUCTIONS

Important!

• Carefully read the instructions before operating the unit
• This appliance is for indoor use only.
• Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet.
• Installation must be in accordance with regulations of the country where the unit is used.
• If you are in any doubt about the suitability of your electrical supply have it checked and, if necessary, modified by a qualified electrician.
• This air conditioner has been tested and is safe to use. However, as with any electrical appliance – use it with care.
• Disconnect the power from the appliance before dismantling, assembling or cleaning.
• Avoid touching any moving parts of the appliance.
• Never insert fingers, pencils or any other objects though the guard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities. It is also not intended for use by those with a lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Do not leave children unsupervised with this appliance.
• Do not clean the unit by spraying it or immersing it in water.
• Never connect the unit to an electrical outlet using an extension cord. If an outlet is not available, one should be installed by a qualified electrician.
• Never operate this appliance if the cord or plug is damaged. Ensure the power cord is not stretched or exposed to sharp objects/edges.
• A damaged supply cord should be replaced by the manufacturer or a qualified electrician in order to avoid a hazard.
• Any service other than regular cleaning or filter replacement should be performed by an authorized service representative. Failure to comply could result in a voided warranty.
• Do not use the appliance for any purpose other than its intended use.
• The air conditioner unit must always be stored and transported upright, otherwise irreparable damage may be caused to the compressor; if in doubt we suggest waiting at least 24 hours before starting the unit.
• Avoid restarting the air conditioning unit unless 3 minutes have passed since being turned off.
• This prevents damage to the compressor.
• Never use the mains plug as a switch to start and turn off the air conditioning unit. Use the provided ON/OFF button located on the control panel.
• Always place the unit on a dry and stable surface.
• The appliance should not be installed in laundry or wet rooms.
• The appliance must be placed in a room without sources of ignition (for example: open flames, an operating gas appliance or an operating electric heater).
• R290 refrigerant gas complies with European environmental directives.
• R290 has a low GWP (Global Warming Potential) of 3.
• The ECOSILENT8W / 8WE contains about 220 g of R290 refrigerant gas.
• The ECOSILENT10W / 10WE contains about 280 g of R290 refrigerant gas.
• Do not use or store in an unventilated space with an area smaller than 10.6 m2 per unit
  (ECOSILENT8W / 8WE) or 13.4 m2 per unit (ECOSILENT10W / 10WE).
• The room must be such as to prevent stagnation of possible leaks of refrigerant gas as there could be a danger of fire or explosion should the refrigerant come into contact with electric heaters, stoves or other sources of ignition.
• Refrigerant gas may be odourless.
• Do not use the product and contact the retailer for advice, if damage has occurred to the unit which may have compromised the refrigerant system.
• Any repairs or maintenance must only be carried out on the unit by a suitably qualified engineer. Before opening and servicing the unit the authorized engineer must be in possession of a copy of the manufacturer’s service manual and must follow the safety information contained within it to ensure all hazards are minimized.
• The refrigerant system should not be perforated or punctured.

Energy Saving and Unit Safety Protection Tips

• Do not cover or restrict the airflow from the outlet or inlet grills.

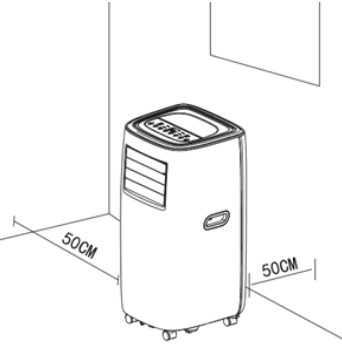

• For maximum performance the minimum distance from a wall or objects should be 50cm.
• Keep the filters clean. Under normal conditions, filters should only need cleaning once every three weeks (approximately). Since the filters remove airborne particles, more frequent  cleaning maybe necessary, depending on the air quality.
• For the initial start-up set the fan speed to maximum and the thermostat to 5 degrees lower than the current room temperature. After, set appliance to your desired settings.
• To protect the unit, we recommend not using the cooling function when the ambient temperature is higher than 35oC.

FEATURES AND PARTS LIST

FEATURES

• 3 in 1 Cooling, Fan, Dehumidifier great for Rooms up to 20 sqm.
• 5 speed DC fan: balancing quiet operation with performance.
• Smart Cool Logic for Improved Energy Efficiency.
• 24 Hours Start / Stop Timer
• Digital Thermostat.
• mart WIFI App control
• Castors and Handles for Enhanced Portability.
• Auto-Restart to retain the settings in the event of power failure.

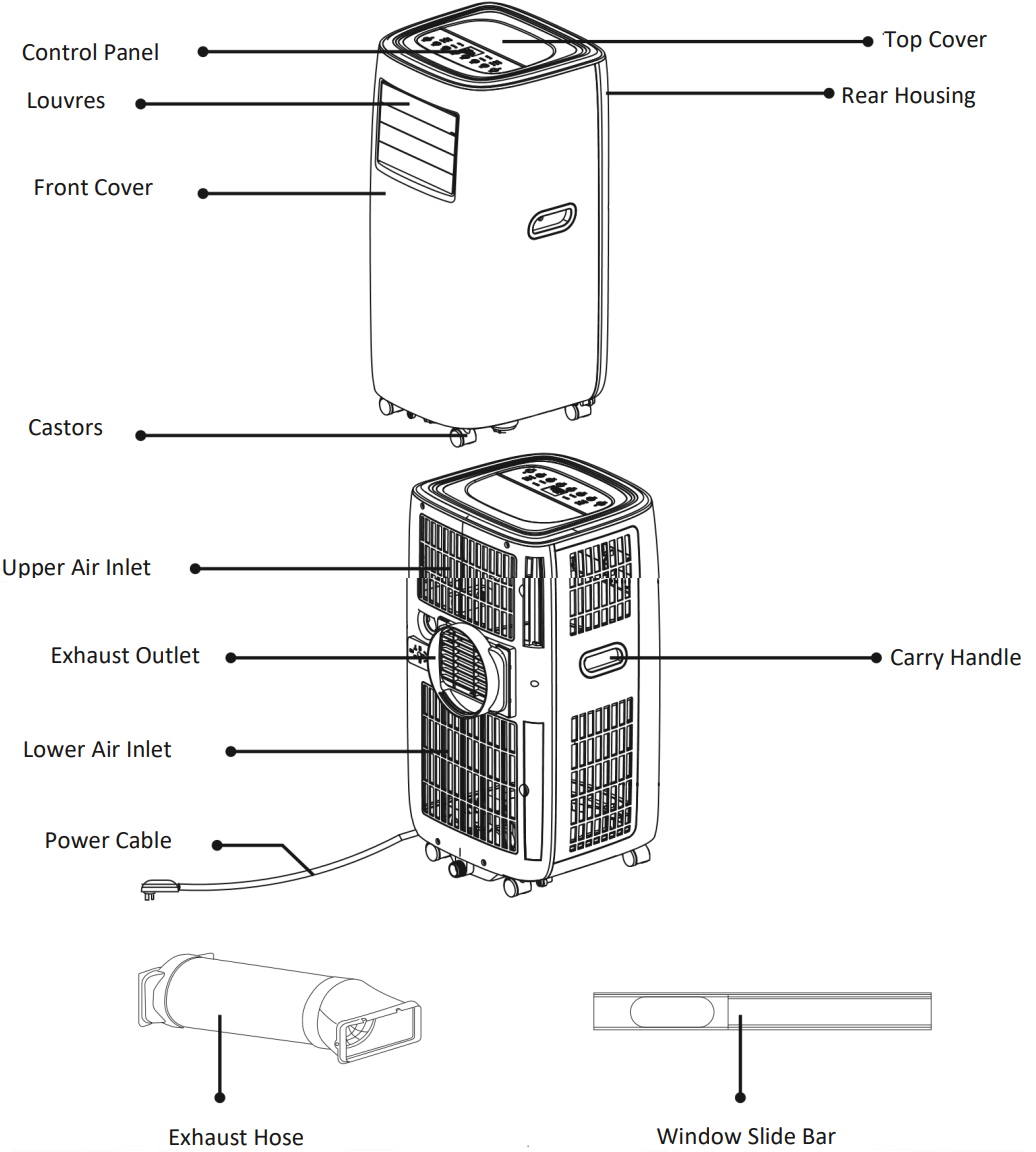

PART LIST

INSTALLATION INSTRUCTIONS

WARNING: Before using this unit, please keep it upright for at least 3-4 hours.

This unit can easily be moved from one room to another.

While moving the unit please note that it must always be kept upright and then placed on an even surface.

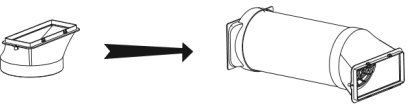

1. Attach the fishtail connector to the end of the hose, by extending the end and twisting until firmly attached (At least 3 full rotations).
2.  Attach the connector on the opposite end of the pipe to the exhaust outlet on the rear of the appliance by putting into position and twisting to lock in place.
3. Make sure the unit is upright and there are no obstructions to the air inlets and outlet grills.

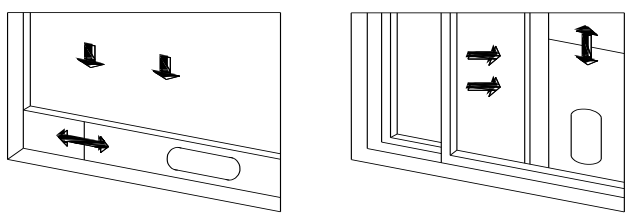

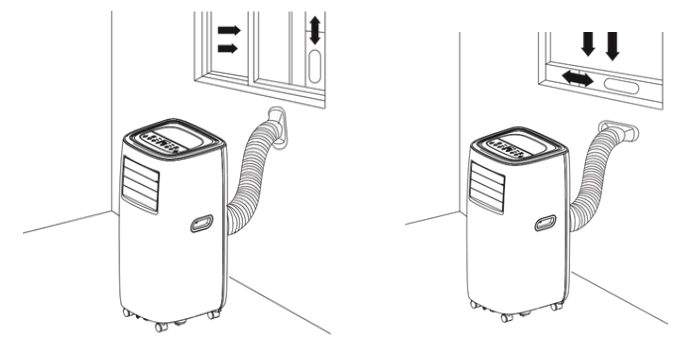

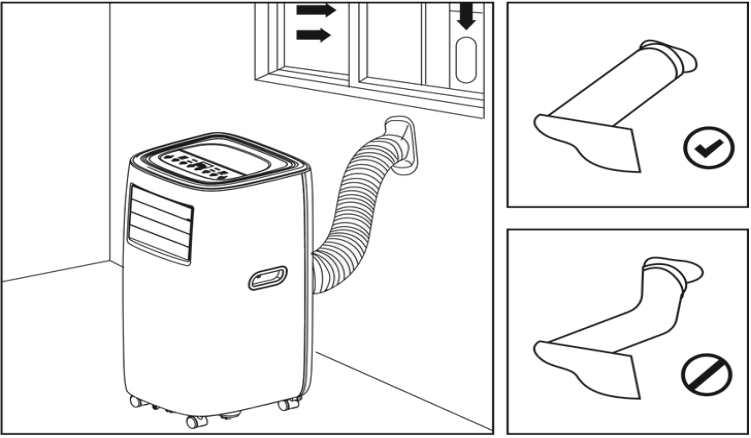

INSTALLATION OF WINDOW KIT

The window kit (slide bar and fishtail) can be used with sliding windows and doors. For other types of window, the fishtail should be used on its own.

• Partially open the window and place the extended slide bar in position before closing the window onto it.
• Fix the fishtail adaptor into the opening on the slide bar
• Fix the exhaust connector on the opposite end of the exhaust hose to the exhaust outlet on the rear of the air conditioner.

NOTES:

• The window kit is only designed to be installed with sliding or sash windows or doors. The window kit is not designed to be used with any other style of windows.
• The fish tail adaptor can be used without the slide bar with most windows / doors.
• When using the air conditioner ensure that the opening around the fishtail adaptor is as small as possible to ensure the efficiency of the unit is not reduced.
• The best form of installation is through a wall duct. By properly venting you expel hot air from your room while efficiently cooling it.
• Your air conditioner should be used without the vent pipe in dry mode. When using dry mode
  ensure that an external water tank is used, monitored and regularly emptied before overflowing. Permanent plumbing can be also installed or an external uplift water pump can be set up to allow for uninterrupted use.

IMPORTANT SAFEGUARDS

The length of the soft hose extends from approximately 30 cm to 180 cm. If hose is extended above this length, the unit may malfunction which can invalidate the warranty. The outlet vent must be well ventilated and not obstructed as this will cause the unit to overheat. Keep the hose as straight and short as possible and avoid bending the air hose by more than 30 degrees in order not to reduce the performance of the unit.

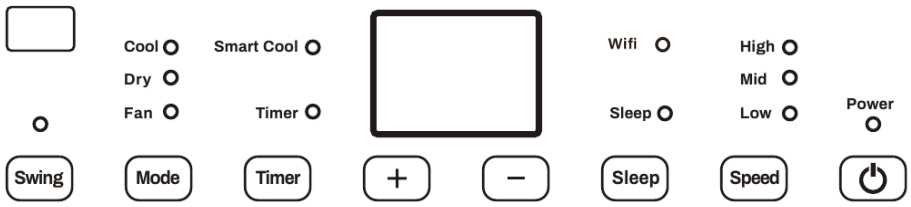

OPERATION INSTRUCTIONS

Press the POWER button to turn the unit ON or OFF.

• Press the MODE button to cycle between the 4 modes, the indicator for the selected mode will be illuminated.
• COOL: The room is cooled with the cold air expelled through the front air outlet while hot air is expelled through the vent pipe. The desired room temperature can be set between 17 and 30 degrees using the + and – buttons, and the fan speed can be changed using the SPEED button.
• FAN: The fan speed can be changed pressing the SPEED button.
• DRY (DEHUMIDIFY): Should be operated without the vent hose, but with continuous drainage to remove moisture from the air. The display will show dH while in dry mode. The unit will operate at low fan speed in DRY mode.
• SMART COOL: An intelligent cooling mode where the fan speed is automatically adjusted based on the amount of cooling required. Attempts to change the fan speed will move the unit into COOL mode.

• Repeatedly press the SPEED button to cycle through the five fan speeds. Each time the SPEED button is pressed, the fan speed will be displayed. The fan speed can be changed between F1 (Low) to F5 (High). The LED indicators will also illuminate to show the fan speed as below:
  F1 –Low, F2 – Low and Mid, F3 – Mid, F4 – Mid and High, F5 – High.
  The fan speed cannot be changed in SMARTCOOL and DRY modes.

• Press to enter sleep mode. The sleep indicator will be illumined and all other indicators will be turned off. In sleep mode, the appliance works at low fan speed. Press SLEEP again to exit sleep mode.
  The SLEEP button is also used to set up the WIFI function. See the WIFI SMART CONTROL section for further information.

The timer functions cannot be combined or repeated.

POWER ON TIMER

With the appliance in standby, press the TIMER button to set the power-on timer.

Use the + and – buttons to adjust the duration of the timer (1 to 24 hours). The Timer indicator will turn on and the unit will start after the selected number of hours.

POWER OFF TIMER

With the appliance running with the desired settings, press the TIMER button to set the power off timer. Use the + and – buttons to adjust the duration of the timer (1 to 24 hours). The timer indicator will illuminate and the unit will stop after selected number of hours.

Used to adjust the temperature in COOL/SMART COOL mode and to set the duration of the TIMER. The buttons are not used in FAN or DRY modes. Press both buttons together to change between displaying the temperature in Celsius and Fahrenheit.



Press this button to enable the swing function. The louvres will slowly move from side to side. If swing is pressed again the louvres will stop in their current position.
Press and hold the swing button to turn off the status indicators on the control panel.

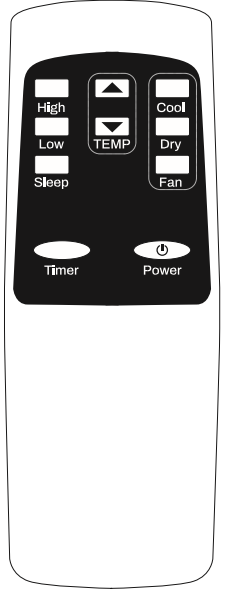

REMOTE CONTROL

Control	Description
POWER	Turn the unit on or off
TIMER	Set the timer
DOWN	Decrease the desired temperature or timer duration
UP	Increase the desired temperature or timer duration
SLEEP	Enter sleep mode
FAN	Enter fan / air purify mode
COOL	Enter cool mode
DRY	Enter dry (dehumidify) mode
HIGH	Set fan speed to high (F5)
LOW	Set fan speed to low (F1)

NOTE: The design of the remote may vary from the diagram, due to continuous product improvement.

MULTI PROTECTIVE FUNCTIONS

FROST PROTECTION

In COOL, DRY or SMART COOL modes, if the temperature of the exhaust is too low, the machine will automatically stop operating until the temperature has risen.

OVERFLOW PROTECTION

When the water in the internal water tank exceeds the warning level, the machine will stop operating and sound an alarm with the LCD display showing “E7”. To resume operation empty the internal water tank. After the water is emptied, the machine will automatically return to the original state.

AUTO-DEFROST

The machine has automatic defrosting function. If during operation the temperature of the internal coils drops too low, the unit will enter auto defrost and the heating symbol will flash on the control panel.

AUTOMATIC THERMAL PROTECTION

To protect the service life of the machine, the machine has automatic thermal protection. If the temperature within the unit is outside of the specified range, the compressor and the lower motor will stop operation. The appliance will automatically return to normal operation after the temperature of the machine recovers.

COMPRESSOR PROTECTION

To prevent damage to the compressor there is a 3 minute delay start protection function.

WIFI SMART CONTROL

BEFORE YOU START

• Ensure your router provides a standard 2.4ghz connection.
• If your router is dual band ensure that both networks have different network names (SSID). The provider of your router / Internet service provider will be able to provide advice specific to your router.
• Place the air conditioner as close as possible to the router during setup.
• Once the app has been installed on your phone, turn off the data connection, and ensure your
  phone is connected to your router via WIFI.

DOWNLOAD THE APP TO YOUR PHONE

Download the ”TUYA SMART” app, from your chosen app store, using the QR codes below, or by searching for the app in your chosen store.



CONNECTION METHODS AVAILABLE FOR SETUP

The air conditioner has two different setup modes, EZ (Quick Connection) and AP (Access Point). The quick connection is a quick and simple way to set the unit up. The AP connection uses a direct local wifi connection between your phone and the air conditioner to upload the network details.

Before starting the setup, with the air conditioner plugged in, but turned off, press and hold the SLEEP button for 5 seconds (until you hear a bleep) to enter the WIFI connection mode. Please ensure your device is in the correct WIFI connection mode for the connection type you are attempting, the flashing of the WIFI light on your air conditioner will indicate this.

Connection Type	Flash Frequency
EZ (Quick Connection)	Twice per second
AP (Access Point)	Once per second

CHANGING BETWEEN CONNECTION TYPES
To change the unit between the two WIFI connection modes, hold the SLEEP button for 5 seconds.

REGISTER THE APP

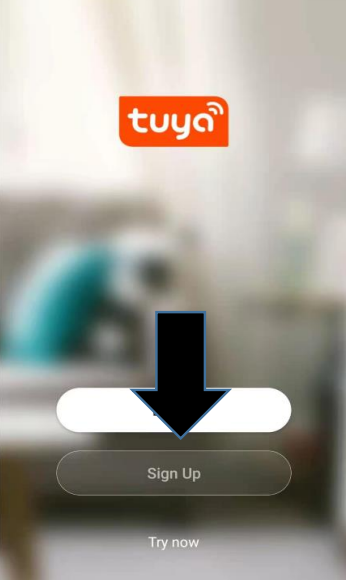

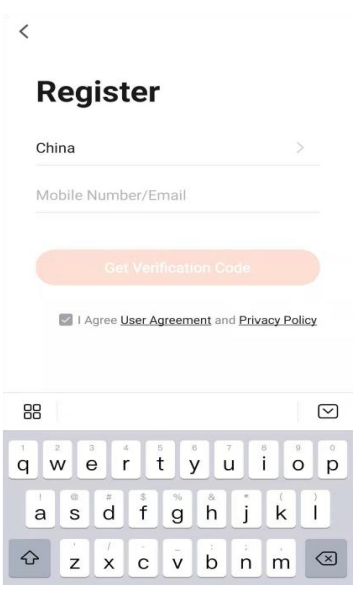

1. Press on the Sign Up button at the bottom of the screen.

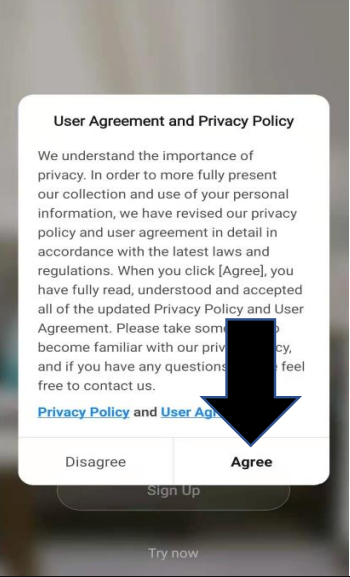

2. Read the Privacy policy and press the Agree Button.
3. Enter your email address or phone number and press continue to register.

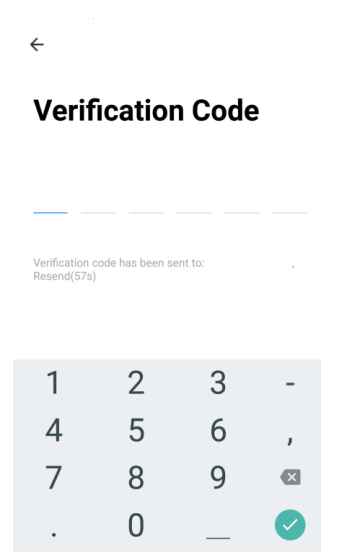

4. A verification code will be sent by the method selected in step 3. Enter the code into the app.

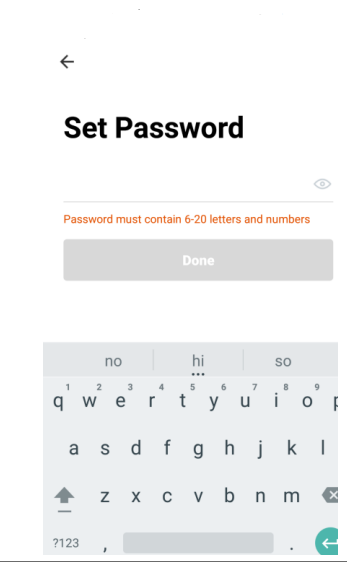

5. Type in the password you would like to create. This needs to be 6-20 characters, with letters and numbers.
6. The app is now registered. It will automatically log you in following registration.

CONNECTING USING EZ (QUICK CONNECTION) MODE

Before initiating the connection, make sure the unit is in standby mode, with the WIFI light flashing twice per second. If not follow the instructions for changing the connection mode. Also ensure your phone is connected to the WIFI network. (We advise turning mobile data off during setup).

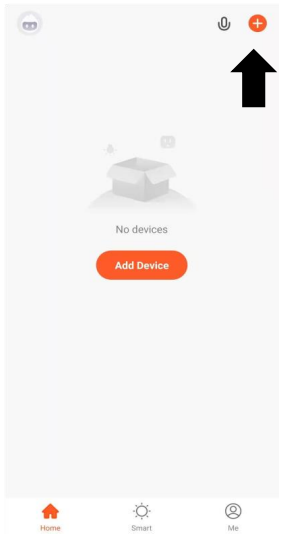

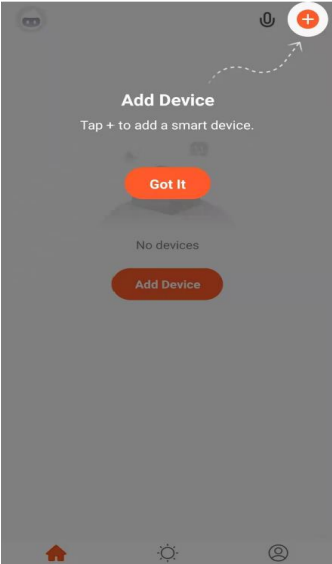

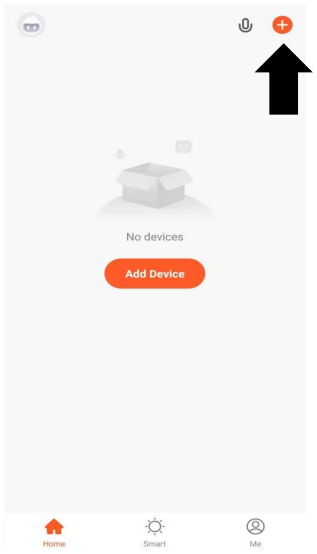

1. Open the app and press “+” to add device

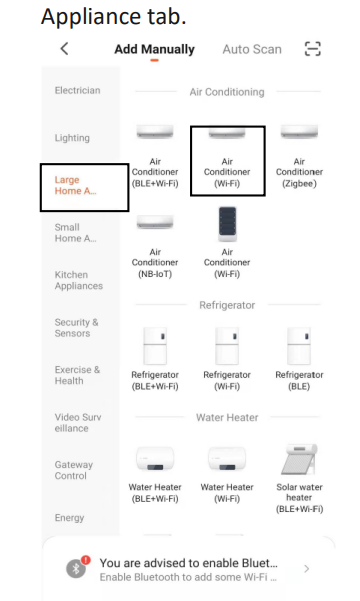

2. Select the type of device as “Air Conditioner (WIFI)” within the Large Home Appliance tab.

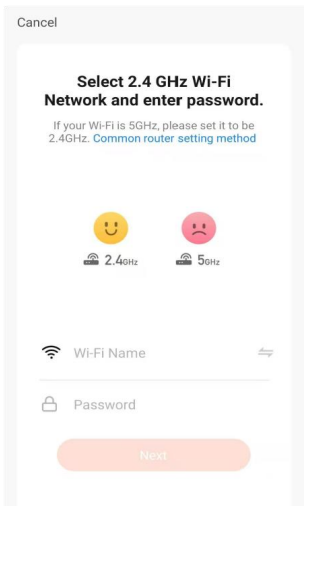

3. Select your network, enter your WIFI password and press Next.

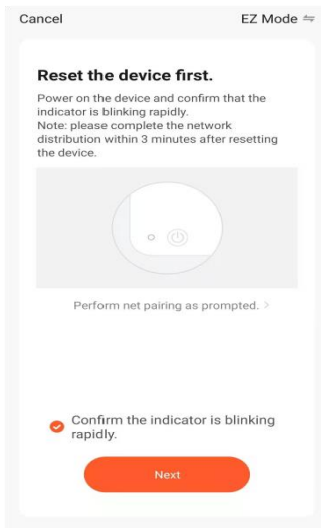

4. Ensure the WIFI light on the air conditioner is flashing twice per second then press on the orange button at the bottom of the screen to confirm.

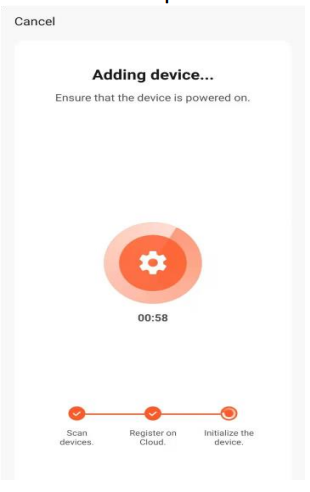

5. This will then transfer the settings to the air conditioner. Wait for this to complete. If this fails, retry. If still unsuccessful please review the troubleshooting section for further help.

CONNECTING USING AP MODE (ALTERNATIVE METHOD)
Before initiating the connection, make sure the unit is in standby mode, with the WIFI light flashing once per second. If not follow the instructions for changing the WIFI connection mode. Also ensure your phone is connected to the WIFI network. (We advise turning mobile data off during setup).

1. Open the app and press “+” to add device
2. Select the type of device as “Air Conditioner (WIFI)” within the Large Home Appliance tab.
3. Select your network, enter your WIFI password and press Next.

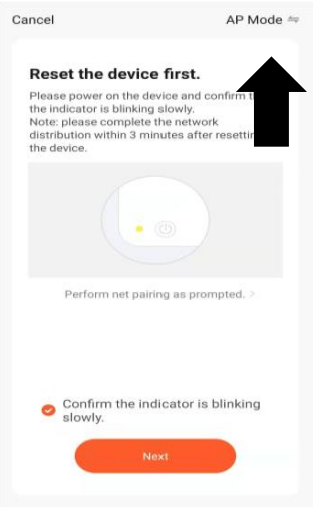

4. Ensure the WIFI light on the air conditioner is slowly flashing (once per three seconds), then select AP Mode in the top right corner before pressing on the orange button at the bottom of the screen to confirm

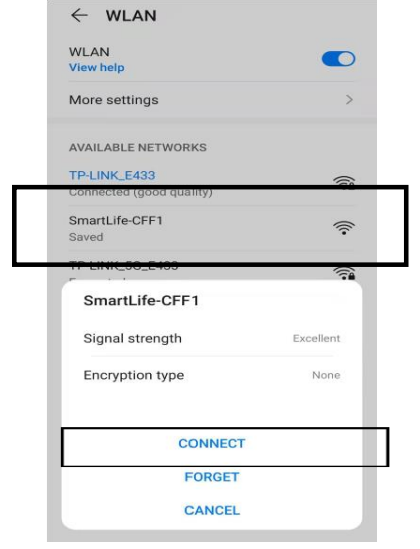

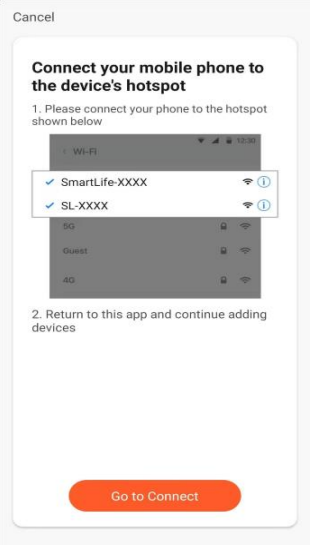

5. Go to network settings in your phone and connect to the “SmartLife xxx” connection. then press on the orange button at the bottom of the screen to confirm
6. Go to network settings in your phone and connect to the “SmartLife xxx” connection. There is no password to enter. Then return back to the app to complete setup.

This will then transfer the settings to the air conditioner. Once the connection process has completed, go back to the network settings on your phone to ensure your phone has reconnected to your WIFI router.

CONTROLLING YOUR DEVICE THROUGH THE APP

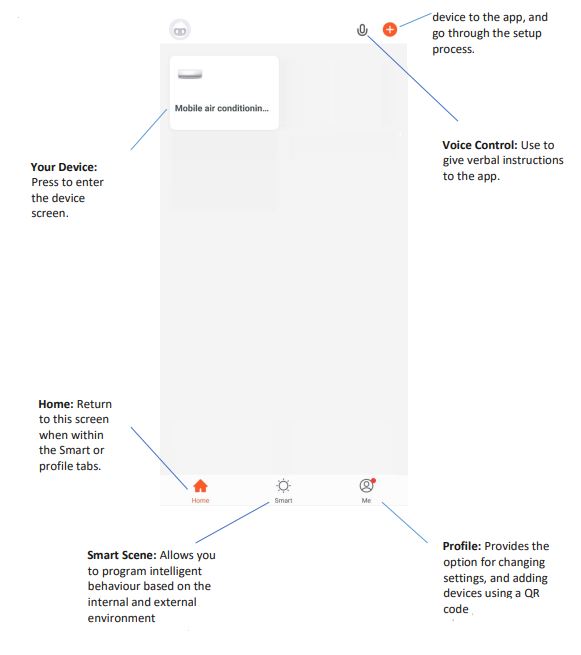

THE HOME SCREEN

Each device has its own entry on the home screen to allow the user to either quickly turn the unit on or off, or to enter the device screen to make other changes.

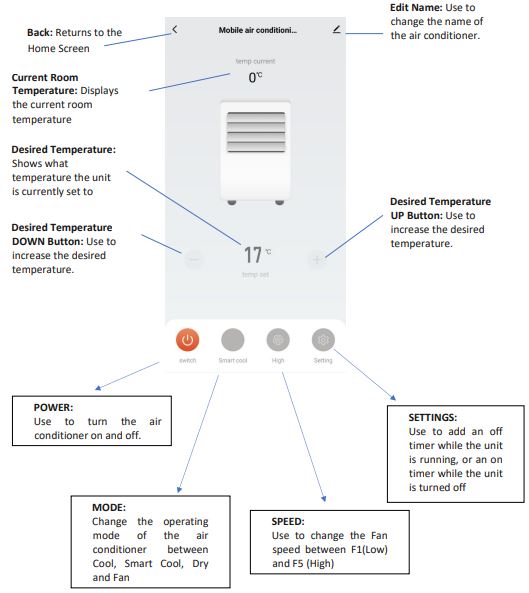

DEVICE SCREEN
The device screen is the main control screen for the air conditioner, providing access to the controls to amend the functions and settings

Due to continuous development of the app, the layout and available features may be subject to change.

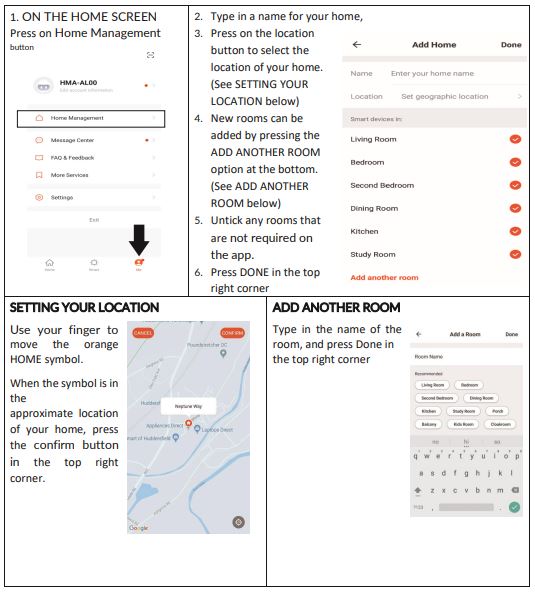

CREATING ROOMS

SMART SCENES
Smart Scenes is a powerful tool providing the option to customize the operation of the air conditioner based both on conditions within the room and outside influences. This gives the user the option of specifying much more intelligent actions. These are split into two categories Scene and Automation.

SCENE
Scene allows for a one touch button to be added to the Home screen. The button can be used to change a number of settings in one go, and can change all the settings within the unit. A number of scenes can easily be setup, allowing the user to easily change between a number of preset configurations.

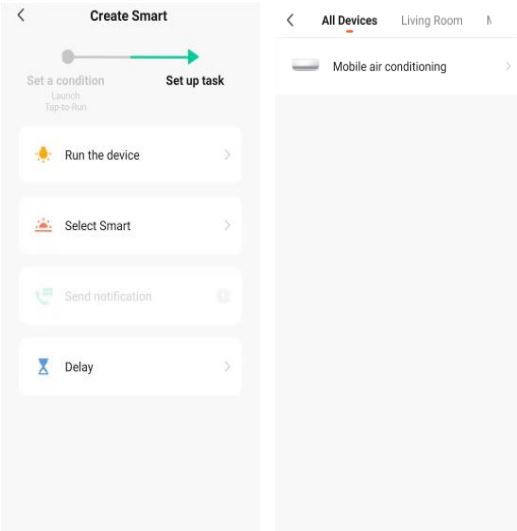

Below is an example of how to set up a scene:

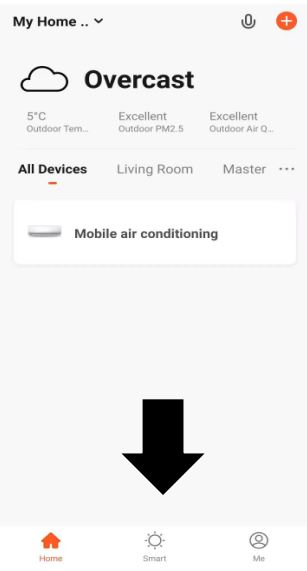

1. Press on the Smart Scene tab at the bottom of the Home screen
2. Press on the Plus in the top right corner to add a smart scene.
3. Select the type of Scene to create.
4. Select Tap To Run, followed by the device you want to control.
5. fdsjkfgadhfdlfjsjgf,ahfgkhsfdhdljfnvdsmnfadh
6. Choose the function, set the vfcdcdcfor the function, and then press the back button in the top right corner, to return to the previous screen. scdfdhfdsakjjkfhjlkjoi;ueltydfewq8oijfbds
7. Once all the functions required have been added, press the Next button in the top right corner to finalize and save your new Scene gfdcuowcgadyhcdcedhfjodfhkehdndl.yadgjwe
8. Once you have named your scene, save it, and the button will be available to activate the scene with one touch within the app. apcasldsjoacgayehjk[oafhessdhffda7ityawhjedlfa

AUTOMATION
Automation allows an automatic action to be set up for the device. This can be triggered by the Time, indoor temperature, humidity of the room, weather conditions, and a range of other influences.

1. Press on the Smart Scene tab at the bottom of the Home screen zeendskhdscdhaj;lkc/adjbv.fjhhkdasncbdscghdlk.csk
2. Press on the Plus in the top right corner to add a smart scene. strehyjukyrjtehrgewejektuorykjthshrjkj
3. Select the type of automation required, such as on schedule for setting up a timed operation dyfuilyqouopgfwywtiweiyouie[ofugiygyewuoiqurgfpo
4. Select the condition when the automation should start. A number of triggers can be combined. dgdgdylkdjtragffGHJUTKJHSREGAFAETUYRSHGEAWYAETG
5. Chose the function, set the value for the function, and then press the back button in the top right corner, to return to the previous screen GFHDKJ;L’LASFJHKL;LKJJFSDLKKL;;SLDJHJKDFKGJFDKDHGLJH
6. Once all the functions required have been added, press the Save button to finalize and save your automated action. The automation can be turned on and off as required.

PROFILE TAB

The profile tab gives you the option to edit both your detail, and use the
added features of the unit.

SARETJSGAFGHJKUETEJTHGTHJHRDSREEGYdfgfg

CHANGING THE NAME OF YOUR DEVICE
When in any of the device screens further settings for the device can be
accessed, by pressing on the three dots in the top right hand corner. The top
option within this allows you to change the name of the device to something
relevant to the use of the product, such as “Living Room Air Conditioner”.
Within the menu, you also have the option of setting up a pattern lock or change your password.

MESSAGE CENTRE
Shows alerts generated by the App.

MORE SERVICES
This allows the unit to be integrated with your favorite home automation
hardware such as Google Home and the Amazon Echo.

CONNECTION TROUBLESHOOTING

1. Check whether the device is powered on and is in the correct WIFI connection mode, if not please refer to the CHANGING BETWEEN CONNECTION MODES section on page 12.
2. Ensure the WIFI password has been entered into the app correctly (Case sensitive)
3. Check that the phone is connected to the WIFI you are connecting the device to.
4.  Ensure the network you are connecting it to is 2.4Ghz (5Ghz WIFI networks are not supported), and that there is a strong WIFI signal to the item.
5. If your router is dual band, ensure that the 2.4ghz network has a different network name (SSID). Further advice on changing router settings will be available from your Internet service provider / Router manufacturer.
6. Check the settings on the router. Encryption should be WPA2-PSK and authorization type should be set to AES
7. Try using the alternative connection method. i.e. If connection is failing when attempting to connect through EZ mode, try AP mode.

MAINTENANCE AND CLEANING

PLEASE SHUT OFF THE UNIT AND UNPLUG FROM THE MAINS BEFORE CLEANING OR PERFORMING ANY MAINTENANCE

CLEAN THE SURFACE
Clean the surface of the machine with a wet soft cloth. Do not use chemicals, such as benzene, alcohol, gasoline, etc,otherwise, as this may cause damage to the surface and or the internal workings of the machine

AIR FILTER CLEANING
If the filter screen is clogged with dust, the effectiveness of the air conditioner is reduced. The filter screen should be cleaned once every two weeks or as often as necessarily in your environment.

CLEAN THE UPPER FILTER SCREEN FRAME

Grip the edge of the evaporator filter screen frame with both hands. Pull out to remove the filter screen from its frame. If present, unscrew the screws fixing the filter before removing it (as shown in the above figure). Put the evaporator filter screen into warm water with neutral detergent (about 40℃ /104℉) and dry it in the shade after rinsing clean.

CLEAN THE LOWER FILTER SCREEN FRAME

Hold the handle of the air inlet filter screen frame, and pull it outward gently to remove it. Put the filter screen into warm water with neutral detergent (about 40℃ / 104 ℉) and dry it in the shade after rinsing clean.

EMPTYING THE INTERNAL WATER TANK

MANUAL DRAINAGE:

When the internal water tank is full the unit will stop working, and the unit will display E7.
Turn off the unit and unplug. Try not to move the model abruptly as this may cause the water in the internal tank to spill out. Place a tray under the lower water plug or place the unit in a drainage area.

Unscrew the drain plug cap and remove the rubber stopper – water will drain from the internal tank. Put the rubber stopper back and screw the drain plug cap back into place.

CONTINUOUS DRAINAGE:
Unscrew the drain plug cap and remove the rubber stopper.
Connect a water pipe to the upper water outlet. You can plumb this pipe into your current plumbing system, lead it outside and use gravity fall or use a water pump.

NOTE: This model has a self-evaporative function, which reduces the need to  empty the water tank in cooling mode. If the unit is vented correctly most of the water is reused to cool the condenser coils and any excess is evaporated. Please do not use continuous drainage if you intend to use the self-evaporating facility.

END OF SEASON MAINTENANCE

1. Remove the rubber stopper from the drainage hole and empty the internal tank. You can also drain the water by leaning the unit backwards.
2. Run the unit in fan mode, with a low fan speed, with the rubber stopper still removed, and a container under the drain port.
3. Keep the unit in this mode for half day – until the conduit is dried. Doing this helps to keep the inside of the unit dry and prevents moulid from developing.
4. Turn off the unit and pull out the plug.
5. Replace the rubber stopper.
6. Coil the wire and bind it together, then put it into the accessory space.
7. Separate the vent pipe and store it safely.
8. Cover the unit and keep it in a dry place.
9. Take the batteries out of remote control and store or dispose of them safely. Keep all accessories with the unit ready for next season.

TROUBLESHOOTING

Do not repair or disassemble the air conditioning. Unqualified repair will invalidate the warranty and may lead to failure, causing injuries and property damage. Only use it as directed in this user manual and only perform operations advised here.

Problem	Reason	Solution
The air conditioner does not work	No electricity	Connect to a working power socket and turn it on.
	Display shows “E7”	Discharge the water inside.
	Ambient temperature too low or too high	Use only within 7–35°C (44–95°F).
	Room temperature lower than desired setting (cooling mode)	Change the desired temperature.
	Ambient temperature too low (dry mode)	Ensure temperature is above 17°C (62°F).
The cooling effect is not good	Direct sunlight	Use curtains to reduce direct sun heat.
	Doors/windows open, too many people, or other heat sources present	Close doors/windows and increase cooling power.
	Dirty filter screen	Clean or replace the filter screen.
	Air inlet or outlet blocked	Clear obstructions and ensure proper venting.
Loud noise	Unit not on a flat surface	Place on a flat, hard surface.
Compressor does not work	Overheat protection activated	Wait 3 minutes, then restart the machine.
The remote control does not work	Remote too far from unit	Move closer and point at the receiver.
	Remote not aligned with receiver	Align properly with the receiver.
	Dead batteries	Replace batteries.
Others	Little or no refrigerant	Contact a service center for inspection and recharge.
	Anti-freezing protection	Wait for automatic defrosting.
	High pressure protection	Unit will resume automatically after pressure decreases.

If problems not listed in the table occur or recommended solutions do not work, please contact the service centre.

ERROR CODES

Code / Mode	Cause	Solution
dH	Unit in dry mode	No action required.
E4	Room temperature sensor error	Clean filters, check vent pipe, and ensure room temperature is within operating range.
E2	Coil temperature sensor error	Check the unit and contact service if the problem continues.
E7	Water full alarm	Empty the water tank.
Mode light flashing	Compressor protection delay in cool/dry/heating mode	Wait approximately 3 minutes for operation to begin.

APPENDIX

Disposal: Do not dispose this product as unsorted municipal waste. Collection of such waste must be handled separately as special treatment is necessary. Recycling facilities.Customers will be able to take any old electrical equipment to participating civic amenity sites run by their local councils. Please remember that this equipment will  be further handled during the recycling process, so please be considerate when depositing your equipment. Please contact the local council for details of your local household waste recycling centers.

electriQ UK SUPPORT

www.electriQ.co.uk/support

Please, for your own convenience, make these simple checks before calling the service line. If the unit still fails to operate call the number below, or complete the online form.

0330 390 3061

1. Has the unit been standing upright for at least 2 hours?
2. Is the unit plugged into the mains?
3. Is the fuse OK?
4. Switch the unit off and wait three minutes to see if the issue is resolved.
5. Restart the unit.
6. Check if the water tank is full.

Office hours: 9AM – 5PM Monday to Friday

www.electriQ.co.uk
Unit J6, Latfields Business Park Latfields Way, Elland West Yorkshire, HX5 9DA

DECLARATION OF CONFORMITY
Hereby, electriQ declares that this Portable air conditioner is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

https://www.electriQ.co.uk/content/declaration-of-conformity

TECHNICAL DATA

Specification	EcoSilent10W / EcoSilent10WE	EcoSilent8W / EcoSilent8WE
Cooling Capacity	2930 W	2350 W
Rated Input	1090 W	870 W
Running Current	5.0 A	4.0 A
Fan	DC motor with 5 fan speeds	DC motor with 5 fan speeds
Airflow	350 m³/h	350 m³/h
EER Rate	A	A
Refrigerant	R290 / 280 g	R290 / 220 g
Sound Power Level	61 dB(A)	61 dB(A)
Thermostat Range	17–30°C	17–30°C
Max. Working Pressure (Suction/Exhaust)	1.0 / 3.5 MPa	1.0 / 3.5 MPa
Maximum Allowable Pressure	3.5 MPa	3.5 MPa
Power Supply	AC 220–240V / 50Hz	AC 220–240V / 50Hz
Net Weight	26 kg	25 kg
Dimensions (L × D × H)	348 × 364 × 689 mm	348 × 364 × 689 mm

The unit must be vented outside when in Air Cooling mode. For the purposes of EU regulation EN12102 this is a local air conditioner and produces less than 65dB(A) sound energy.

FAQ’s

Q1: Why must I keep the unit upright for 3-4 hours before first use?

A: You must keep the electriQ ECOSILENT8W upright for 3-4 hours before switching it on. This allows the refrigerant and compressor oil to settle after transport. If you turn it on immediately, you could permanently damage the internal components and void your warranty.

Q2: How much space should I leave around the air conditioner?

A: For maximum performance, maintain at least 50cm (approximately 19 inches) of clearance from walls, furniture, or other objects. Never cover or restrict the airflow from the outlet or inlet grills.

Q4: What are the operating temperature limits for cooling mode?

A: For best results, do not use the cooling function when the room temperature exceeds 35°C (95°F). The unit will also stop cooling if the ambient temperature drops too low.

Q4: What is “dry mode” and what does the “dH” code mean?

A: Dry mode (dehumidifier mode) removes excess moisture from the air without active cooling. When the unit displays “dH” on the screen, it simply means the unit is in dry mode. This is normal and not an error.

Q5: How do I fix WiFi connection problems?

A: First, ensure the unit is powered on and in the correct WiFi connection mode (indicated by the WiFi light flashing). Make sure your phone is connected to the same 2.4GHz WiFi network. If the setup fails, try turning your mobile data off during the process and retry.
