Introduction

The Dell XPS 13 9300 is a premium ultrabook that combines a stunning InfinityEdge display with powerful performance in a compact, portable chassis. It is designed for professionals, students, and creatives who need a reliable and stylish laptop for demanding tasks like video editing, graphic design, and programming.

This manual provides a comprehensive guide to setting up, using, and maintaining your Dell XPS 13 9300. It covers everything from unboxing and initial setup to advanced features, troubleshooting, and safety information.

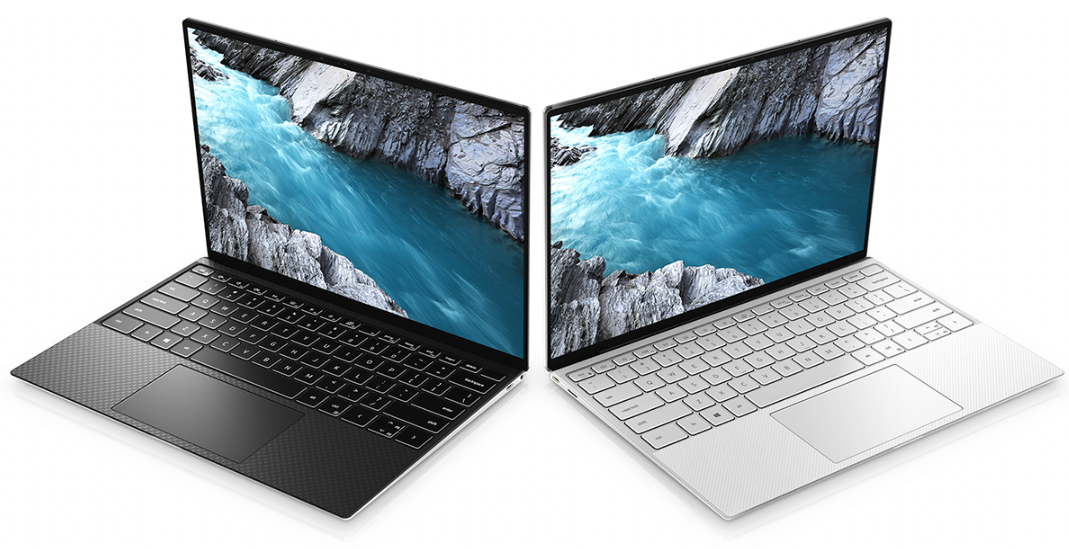

Product Overview

The Dell XPS 13 9300 is a 13.4-inch laptop known for its ultra-thin bezels (InfinityEdge display) and premium build quality. It features the latest Intel processors, up to 32GB of RAM, and long-lasting battery life. The laptop includes Thunderbolt 3 ports for fast data transfer and versatile connectivity. It runs Windows 10 or Windows 11, depending on the configuration.

Full Specifications

Key Features

• InfinityEdge Display: The 13.4-inch screen features ultra-thin bezels, providing a larger viewing area in a compact body.
• Premium Build: Constructed with machined aluminium and carbon fibre, the XPS 13 9300 is durable and lightweight.
• Thunderbolt 3 Connectivity: Two Thunderbolt 3 ports support fast data transfer, external displays, and charging via a single cable.
• Long Battery Life: The 52 Wh battery provides up to 12 hours of use, ideal for all-day productivity.
• Killer Wi-Fi 6: Delivers faster and more reliable wireless connectivity.
• Backlit Keyboard: The keyboard is backlit for comfortable typing in low-light conditions.

How to Use

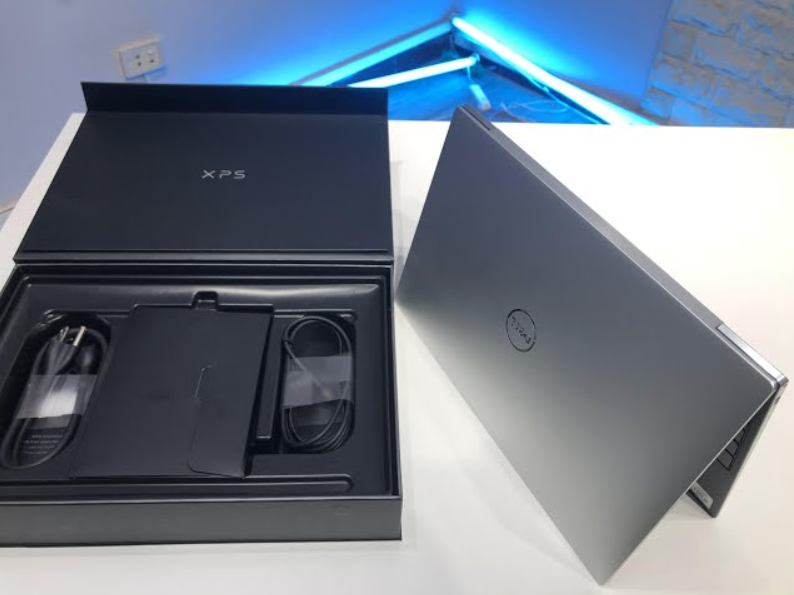

What’s in the Box

• Dell XPS 13 9300 laptop
• 45W USB-C power adapter
• USB-C to USB-C cable
• Quick Start Guide and warranty card

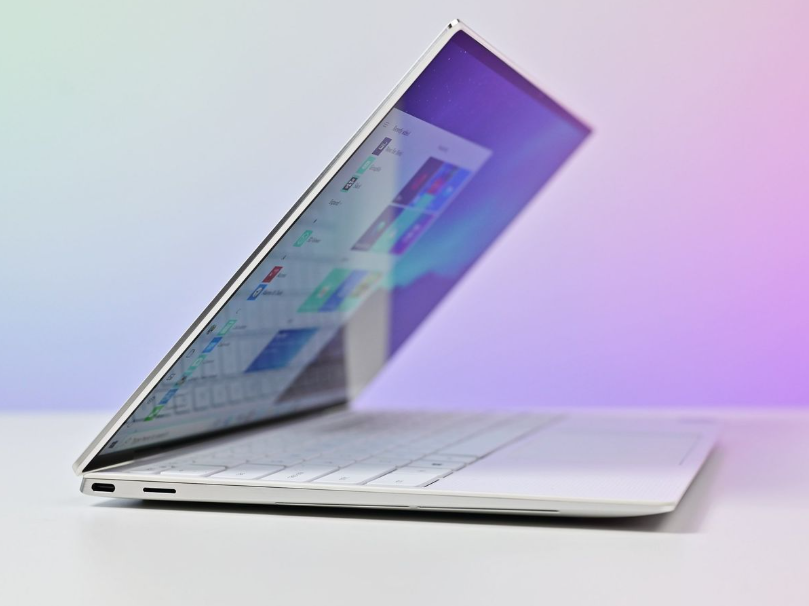

Initial Setup

1. Connect Power: Plug the USB-C power adapter into the laptop and a wall outlet. Press the power button.
2. Complete Windows Setup: Follow the on-screen prompts to select your region, language, and connect to Wi-Fi. Sign in with your Microsoft account.
3. Dell SupportAssist: The pre-installed Dell SupportAssist app will check for driver and firmware updates. Run it to ensure your system is up to date.
4. Dell Digital Delivery: If your laptop was configured with software, use Dell Digital Delivery to download and install it.
5. Battery Calibration: For optimal battery performance, fully charge the laptop, then discharge it until it turns off, and charge it again.

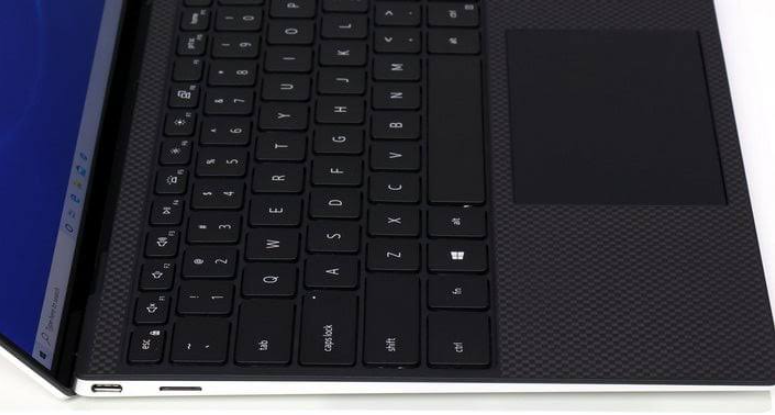

Keyboard Shortcuts

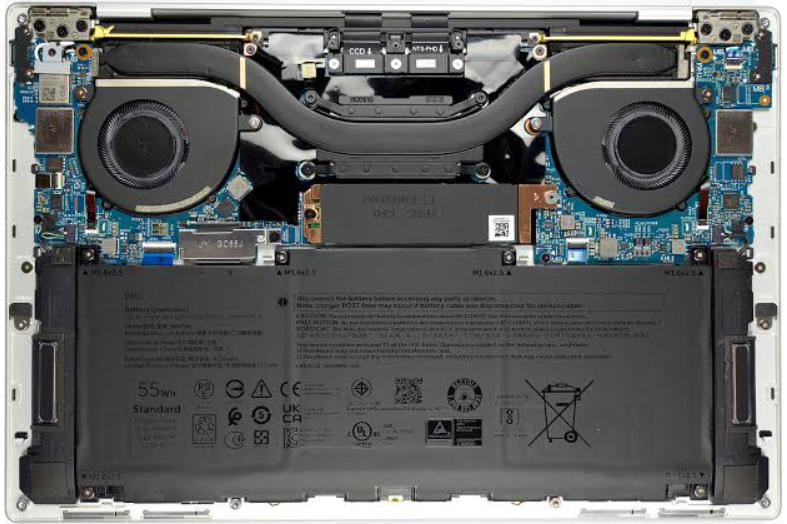

Internal Upgrades

Internal Upgrades & Teardown Guide

The XPS 13 9300 is not designed for easy user upgrades, but some components are accessible. Before opening the laptop, understand what can and cannot be changed.

What You Can and Cannot Upgrade

Tools You Will Need

• Phillips-head screwdriver (size PH0 and PH1)
• Plastic pry tool or guitar pick
• Torx T5 screwdriver (for some internal screws)
• Anti-static wrist strap (recommended)
• Compressed air (for cleaning while open)

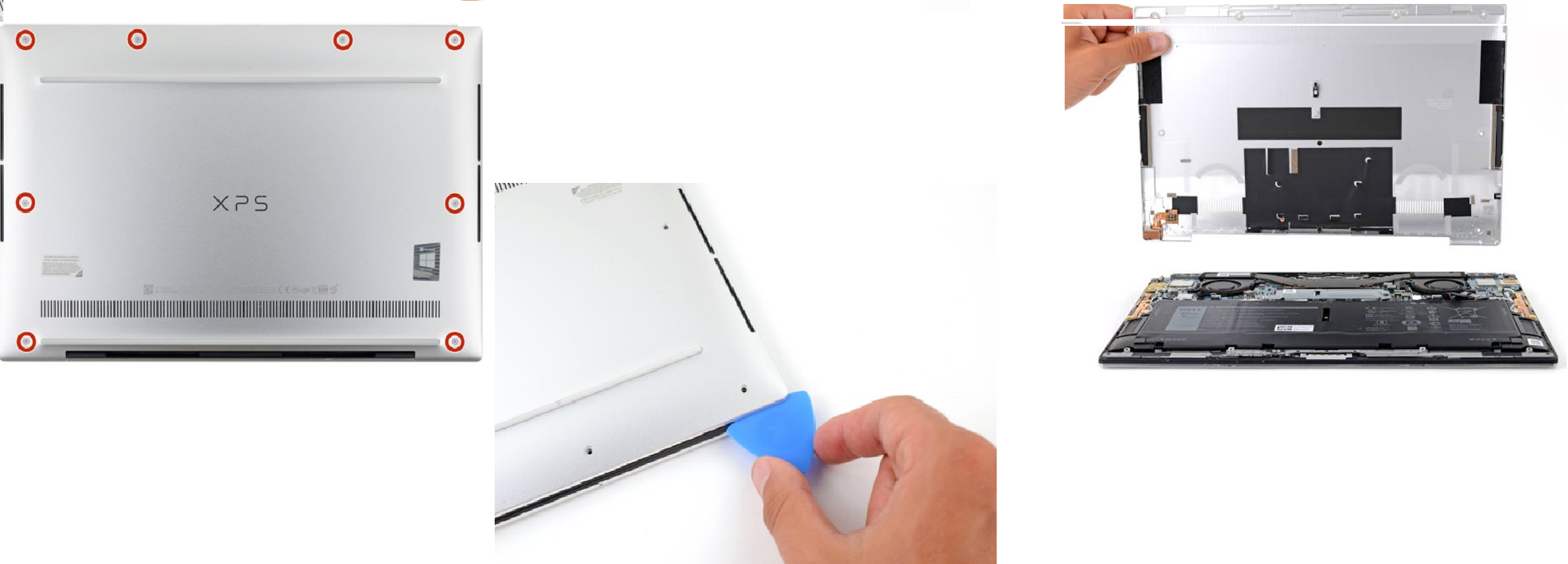

Removing the Bottom Cover

1. Power down completely. Shut down Windows, then unplug the power adapter and all cables.
2. Ground yourself. Touch a metal object or wear an anti-static wrist strap to prevent static discharge.
3. Remove the eight screws from the bottom panel. Note that the two screws nearest the hinge are captive and will not fully detach—they stay attached to the cover.
4. Pry the cover loose. Insert a plastic pry tool into the gap near the hinge and work your way around the edges. There are plastic clips holding the panel in place. Work slowly to avoid breaking them.
5. Lift the cover away and set it aside.

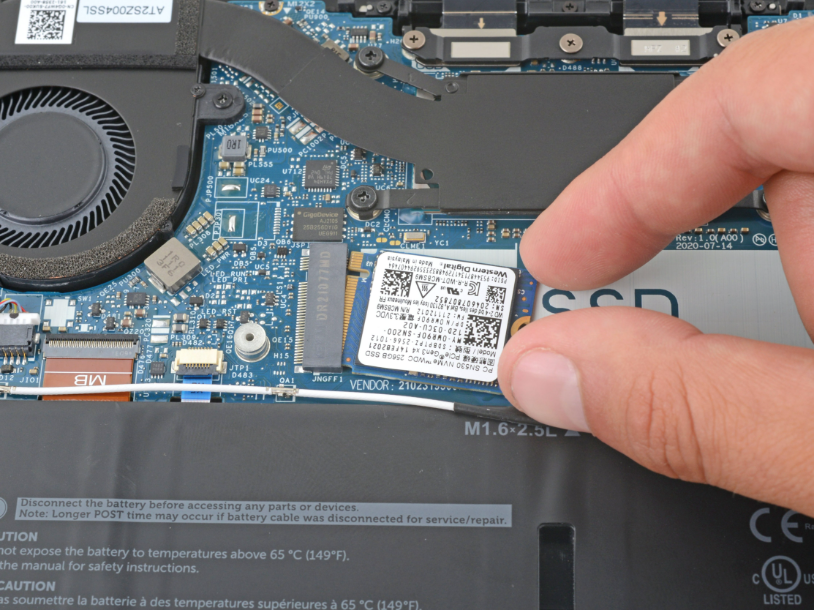

Replacing the M.2 SSD

The XPS 13 9300 has one M.2 2280 slot (22mm wide, 80mm long). It supports PCIe NVMe drives.

1. Locate the SSD. It sits near the centre-left of the chassis, beneath a small metal shield.
2. Remove the shield. Unscrew the single Phillips screw holding the thermal shield in place, then lift it off.
3. Remove the retaining screw at the far end of the SSD.
4. Slide the SSD out at a slight angle (about 30 degrees).
5. Insert the new SSD at the same angle, then press it flat and secure it with the retaining screw.
6. Replace the thermal shield and screw it down.

After installing a new SSD:

• You will need to reinstall Windows from a USB drive, or clone your old drive beforehand using cloning software and a USB-to-M.2 adapter.
• Once Windows is installed, download Dell SupportAssist to automatically install all necessary drivers.

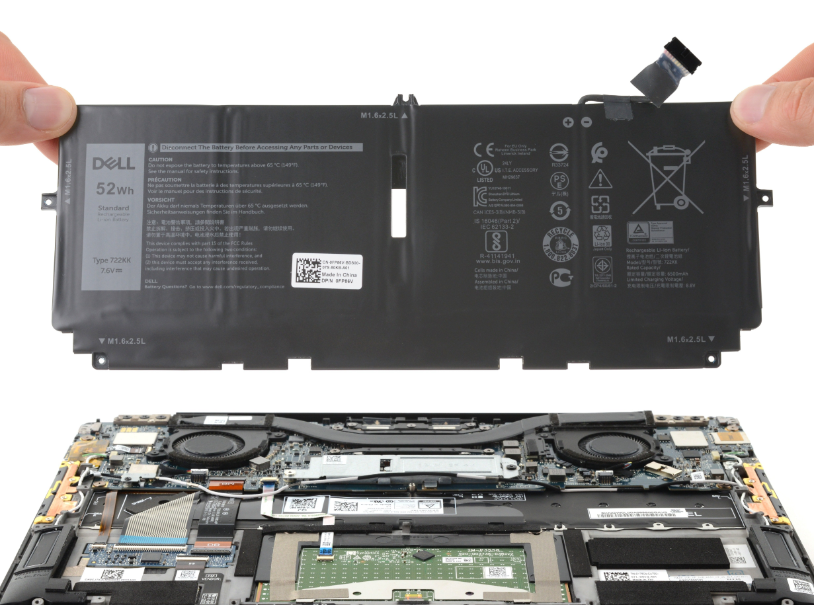

Replacing the Battery

Warning: The battery is glued in place and the replacement process requires disconnecting several delicate ribbon cables. Proceed with caution.

1. Disconnect the battery first. Locate the battery connector near the top-right of the motherboard. Gently slide the metal latch back and lift the connector away.
2. Remove the screws holding the battery in place (typically six to eight Phillips screws).
3. Lift the battery. Use a plastic pry tool to gently separate the battery from the adhesive. Work slowly from one corner.
4. Install the new battery by reversing the process. Reconnect the battery connector last, pressing it firmly until it clicks.

Battery part numbers: Dell uses specific part numbers for the XPS 13 9300 battery. Check your Service Tag on Dell’s website to find the exact replacement.

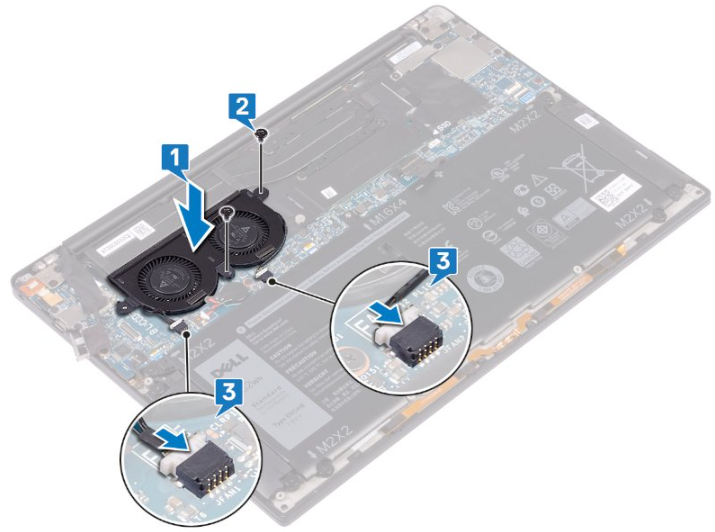

Cleaning the Cooling System

While the bottom cover is off, take the opportunity to clean the fan and heatsink.

1. Hold the fan blades still with a toothpick or plastic tool.
2. Blow compressed air through the fan and heatsink fins. Do not let the fan spin freely—spinning it too fast can damage the bearing.
3. Wipe away dust from the vents with a dry cloth.

Reassembling the Laptop

1. Reconnect all cables you disconnected (battery, SSD shield).
2. Align the bottom cover and press it down around the edges until all clips snap into place.
3. Reinstall the eight screws. Tighten them in a diagonal pattern, but do not overtighten.
4. Power on and verify that the laptop boots correctly. If the SSD was replaced, install Windows and drivers.

Post-Upgrade Checklist

• Verify the new SSD is recognised in BIOS (press F2 at startup).
• Install Windows and all drivers via Dell SupportAssist.
• Check battery health in Dell Power Manager.
• Run a full system diagnostic in Dell SupportAssist.
• Confirm the keyboard, touchpad, Wi-Fi, and all ports are functioning.

Important Notes

• Warranty: Opening the laptop does not void your warranty in most regions, but damage caused during the upgrade is not covered. Keep the original parts if you ever need warranty service.
• Thermal paste: If you remove the heatsink for any reason, you must clean off the old thermal paste and apply new paste before reassembling.
• Ribbon cables: The XPS 13 uses many delicate ribbon cables. Always lift the locking latch before pulling a cable out, and never pull on the wires themselves.

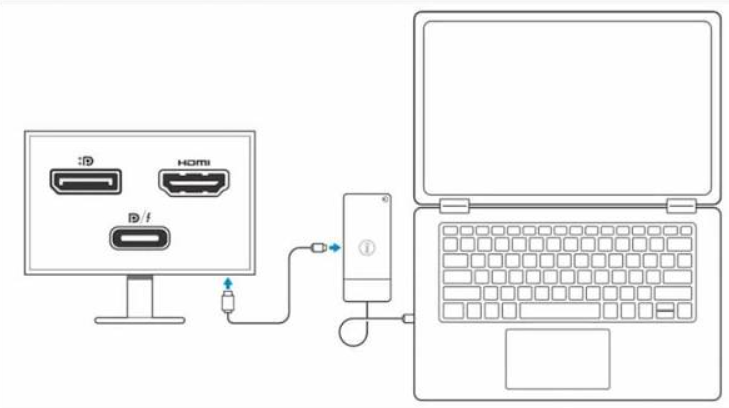

Connecting to External Displays

Use a USB-C to HDMI/DisplayPort adapter or a Thunderbolt 3 dock to connect an external monitor. Press Fn + F8 to cycle through display modes.

Using the microSD Card Reader

Insert a microSD card into the slot on the right side of the laptop. Windows will recognize it as a removable drive.

Troubleshooting & Common Problems

Common Problems Quick List

• Laptop feels slow: Run Disk Clean-up, disable startup programs in Task Manager, and check for malware.
• USB-C port not working: Restart the laptop. Check for debris in the port. Update the Thunderbolt driver.
• Laptop won’t charge: Try a different USB-C charger and cable. Check the charging port for debris.

Frequently Asked Questions

• Can I upgrade the RAM or storage?
  The RAM is soldered and cannot be upgraded. The M.2 NVMe SSD can be replaced by removing the bottom cover.
• Does the XPS 13 9300 have a headphone jack?
  Yes, it has a 3.5mm headphone/microphone combo jack.
• How do I enter the BIOS?
  Restart the laptop and press F2 repeatedly at the Dell logo. For the one-time boot menu, press F12.
• Can I use a USB-C dock with this laptop?
  Yes, the Thunderbolt 3 ports support a wide range of USB-C docks and hubs.
• How do I factory reset the laptop?
  Go to Settings > System > Recovery > Reset this PC. Choose Keep my files or Remove everything.
• How do I check for driver updates?
  Open Dell SupportAssist (pre-installed) or visit Dell’s support website and enter your Service Tag.

Tips

• Use Dell Power Manager: Set battery charging thresholds to extend battery lifespan. If not installed, download it from the Microsoft Store.
• Keep drivers updated: Run Dell SupportAssist monthly to check for driver and BIOS updates.
• Clean the vents: Every 3 months, use compressed air to blow dust out of the air vents.
• Create a recovery drive: Use a 16GB USB drive and search for “Create a recovery drive” in Windows.
• Use the microSD reader: It’s a convenient way to transfer photos from cameras.

Safety Information

• Power adapter: Use only the Dell charger that came with the laptop, or a genuine Dell replacement with the correct wattage (45W or higher).
• Battery: Do not puncture, drop, or expose the battery to high heat. If the battery swells, stop using the laptop immediately and contact Dell support.
• Ventilation: Keep the air vents on the bottom and sides clear. Do not use the laptop on soft surfaces (blankets, pillows) for extended periods.
• Screen: Close the lid gently. Clean the screen with a dry microfiber cloth.
• Repairs: If you’re not comfortable opening the laptop, take it to a professional. Always disconnect the battery before touching internal components.
